neutrik > Products > NO4FDW-A
NO4FDW-A

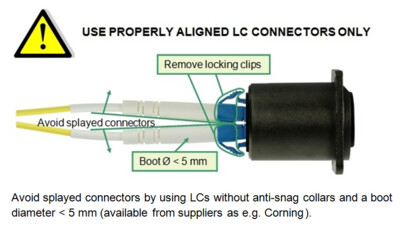

Properly aligned LC Connectors
NO4FDW-A
Properly aligned LC Connectors

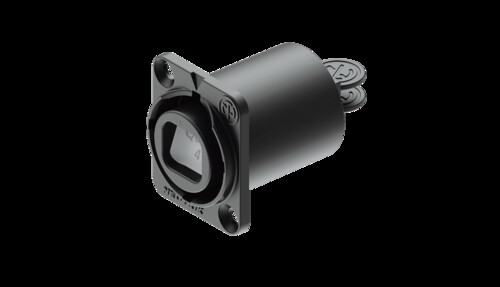

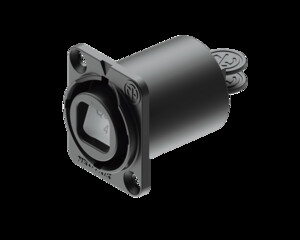

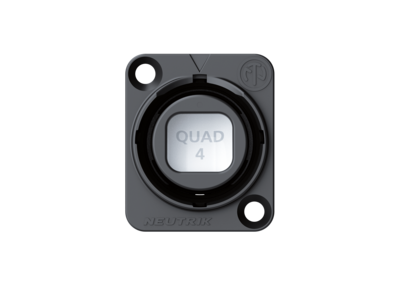

NO4FDW-A

Chassis connector, black chromium plating, front panel mount, IP65 ingress protection in mated condition with SCDP-*.

The chassis connector acts as a "feed-through" allowing simplified installations by connecting four conventional LCs on the rear. It is built in the standard D size shell and features an automatic sealing cover for maximum dust and dirt protection and a Push-Pull locking mechanism for safe connection.

Download Data Sheet
Selection of topics
Features & Benefits Downloads Technical Information Accessories
Download Data Sheet

Features & Benefits

  • Rugged 4-channel Point-to-Point multichannel routing solution
  • Laser protected metal shutter seals dust proof with two-component rubber gasket
  • IP65 ingress protection in mated condition with SCDP-*
  • Accommodates standard LC connectors on the rear for cost effective and simple installations
  • Color coding with SCDP-* according to ANSI/TIA-568.3-D Standard
    Multi mode – black
    Single mode PC – blue
    Single mode APC – green

Downloads

  • Drawing NO4FDW-A
  • Drawing NO4FDW-A
  • Handling Instruction - opticalCON QUAD
  • Product Folder opticalCON
  • Reference Projects - opticalCON
  • Cable datasheet - opticalCON QUAD

Technical Information

Product
Title NO4FDW-A
Gender female
Mechanical
Insertion force < 45 N
Withdrawal force < 45 N
Lifetime > 5000 mating cycles
Wiresize
Locking device Push-Pull
Mounting direction Front mounting
Chassis shape D
Material
Insert Polyamide (PA 6, PBT 30 % GR, PBT 50 % GR)
Shell Zinc diecast (ZnAl4Cu1)
Shell plating Black chromium
Environmental
Flammability UL 94 V-0
Temperature range -40 °C to +75 °C
Optical
Insertion loss < 0.5 dB / connection

Accessories

CAS-FOCD-ADV
CAS-FOCD-ADV

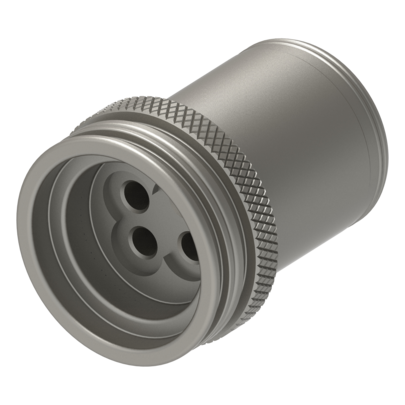

FOID-STQC
FOID-STQC
NAOBO Application
NAOBO
NDO
NDO
NZPF1RU
NZPF1RU
NZPF3RU
NZPF3RU
NZP1RU-8
NZP1RU-8
NZPFD
NZPFD
NZPFD-2
NZPFD-2
NZPFD-4SC
NZPFD-4SC
NZPFD-4SC-S
NZPFD-4SC-S
NZPFD-4ST
NZPFD-4ST
NAO4MX-R-L
opticalCON QUAD loop Connector
SCDR
SCDR
SCDX geschlossen
SCDX
SCDP
SCDP-*
SCNO-FDW-R
SCNO-FDW-A
SCD-NC
SCD-NC
SCCD-W
SCCD-W
