NZPFD
neutrik / Products / NZPFD

NZPFD

Download Data Sheet

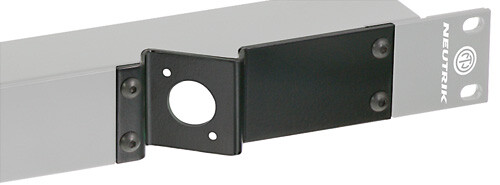

The NZPFD plate can be loaded with opticalCON DUO or QUAD chassis connectors. Including lettering possibility.

Downloads
nzpfd-1
pdf - 45.87 KB
nzpfd-2
dxf - 399.23 KB
nzpfd-3
stp - 72.16 KB
d-shape-z-panel
pdf - 303.97 KB
reference-projects---opticalcon
pdf - 4.96 MB
NEUTRIK opticalCON Guide – NF05 V32 – 202506
pdf - 51.19 MB
Accessories
audio
NZPF1RU

1RU opticalCON panel frame
audio
NZPF3RU

3RU opticalCON panel frame
audio
NO2-4FDW-A - opticalCON DUO ADVANCED CHASSIS CONNECTOR_sideview.png
NO2-4FDW-A

Chassis connector, black chromium plating, 4 solder contacts and 1 LC-Duplex feedthrough socket, waterproof acc. to IP65 ingress protection in mated condition with SCDP-*.
audio
NO2-4FDW-1-A

Chassis connector, black chromium plating, 4 solder contacts, 1 LC-Duplex feedthrough socket, 1 shell ground contact (for SMPTE cable shield), waterproof acc. to IP65 ingress protection in mated condition with SCDP-*.
NZPF3RU loaded
NZPF1RU loaded
opticalCON Panel Outlet
