NAOBO

Download Data Sheet

NAOBO is a flexible chassis mounting and adaption solution with cable strain relief to meet any kind of standard fiber connector (z.B. LC, SC, ST). It can be fixed to a rack with a cable tie. The breakout adapter can be mounted straight or angled.

 Breakout-Adapter-Kit consists of 1 NAOBO plastic housing, 1 counter nut, 1 90° rear shell, 1 PG-gland, 1 cable tie and 2 screws.

 NAOBO can only be used for all opticalCON® DUO and opticalCON® QUAD D-shape chassis.

Downloads
naobo-1
pdf - 114.46 KB
naobo-2
dxf - 1.12 MB
naobo
pdf - 216.81 KB
reference-projects---opticalcon
pdf - 4.96 MB
NEUTRIK opticalCON Guide – NF05 V30 – 202410
pdf - 43.46 MB

Technical Information

Product
Title NAOBO
Mechanical
Wiresize
Durchmesser Kabelauslass 7.5 - 13 mm
Accessories
NO4FDW-A - opticalCON QUAD ADVANCED CHASSIS CONNECTOR_topview.png
NO4FDW-A

Chassis connector, black chromium plating, front panel mount, IP65 ingress protection in mated condition with SCDP-*.

SCNO-FDW-A

Rugged, all metal sealing cover for opticalCON chassis connectors
NAOBO shipment

Straight mount

NAOBO straight

Angled mount

NAOBO right angled

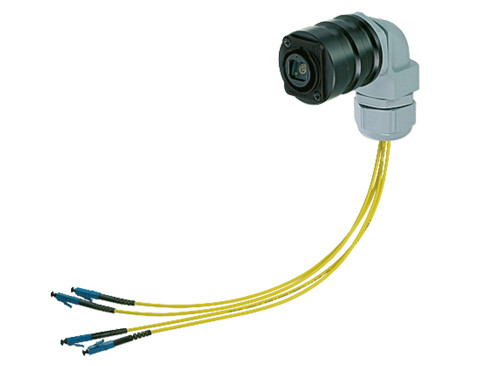

NAOBO application example

NAOBO Application Example
