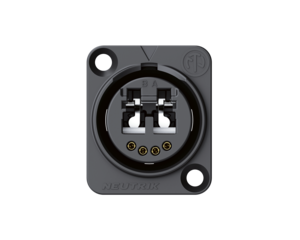

NO2-4FDW-1-A NO2-4FDW-1-A topview
NO2-4FDW-1-A
NO2-4FDW-1-A topview
1/2
neutrik / Products / NO2-4FDW-1-A

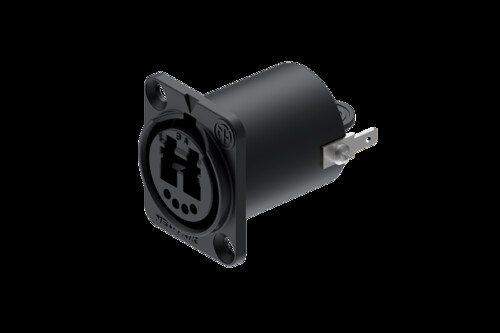

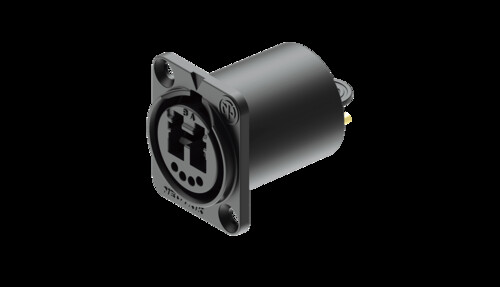

NO2-4FDW-1-A

Download Data Sheet

Chassis connector with black chromium plating, 4 solder contacts, 1 LC-Duplex feedthrough socket and 1 shell ground contact (for SMPTE cable shield), waterproof acc. to IP65 ingress protection in mated condition with SCDP-*.

The chassis connector acts as a "feed-through" allowing simplified installations by connecting a conventional LC-Duplex on the rear. It is built in the standard D size shell and features an automatic sealing cover for maximum dust and dirt protection and a Push-Pull locking mechanism for safe connection.

Not compatible to SMPTE 304M standard. Suitable for indoor (studio) camera links considering specific conditions acc. to IEC 60664-1 like pollution degree 1, overvoltage category 1 and rated voltage.

Features & Benefits
  • Suggested OEM equipment connector due to LC front compatibility
  • Designed as feedthrough with automatic sealing shutter
  • Shutter with silicone gasket protects optical connection from dust and dirt
  • Suitable for indoor (studio) camera links considering specific conditions acc. to IEC 60664-1 like pollution degree 1, overvoltage category 1 and rated voltage
  • Accommodates standard LC connectors on the rear for simple installation
  • Connection on the front side either by rugged opticalCON or standard LC connector
  • The low cost of the chassis connector makes it a viable alternative to traditional connectors in fixed installations
  • IP65 ingress protection in mated condition with SCDP-*
  • Color coding with SCDP-* according to ANSI/TIA-568.3-D Standard:
    Multimode - black
    Single mode PC - blue
    Single mode APC - green
Downloads
3D Ansicht NO2-4FDW-1-A
stp - 2.56 MB
20000504_-_NO2-4FDW-1-A
pdf - 481.34 KB
20000504_-_NO2-4FDW-1-A
dxf - 3.01 MB
BDA 520 V2 - opticalCON DUO Handling Instruction
pdf - 3.7 MB
NEUTRIK opticalCON Guide – NF05 V30 – 202410
pdf - 43.46 MB
reference-projects---opticalcon
pdf - 4.96 MB
Certificate_Eurofins_C6M22103-0020-104437
pdf - 286.43 KB
CB Test Certificate SE-103019M1
pdf - 143.2 KB

Technical Information

Product
Title NO2-4FDW-1-A
Gender female
Electrical
Contact resistance < 7 mΩ
Dielectric strength 1,5 kVdc
Insulation resistance > 2 GΩ (initial)
Rated current per contact 6 A
Rated voltage < 50 V (1)
Ground contact Faston 2.8 x 0.5 (soldering possible)
Mechanical
Insertion force < 45 N
Withdrawal force < 45 N
Lifetime (typ.) 5000 mating cycles
Locking force 1000 N
Wiresize
Locking device Push-Pull
Mounting direction Front mounting
Chassis shape D
Material
Contacts Bronze (CuSn6)
Insert Polyamide (PA 6, PBT 30 % GR, PBT 50 % GR)
Shell Zinc diecast (ZnAl4Cu1)
Shell plating Black chromium
Split sleeve ceramics
Environmental
Temperature range -40 °C to +75 °C
Protection class IP65 in mated condition in combination with SCDP-*
Optical
Insertion loss < 0.4 dB / connection
Optical connector LC-Duplex Feedthrough
