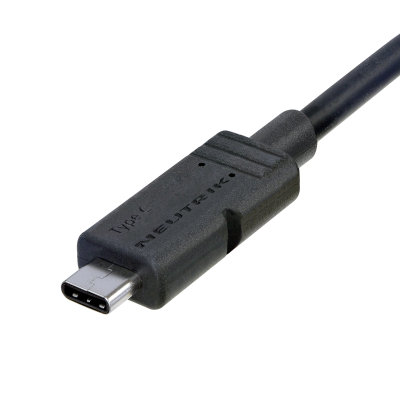

NMK-048U-*
The Neutrik® NMK-048U-* USB-C cables are part of the mediaCON® product group. The rugged and durable design ensures secure locking when mated with NMC-C*. This allows for the use of high performance USB-C sytems even in the most demanding environments - while remaining fully compatible with standard USB-C receptacles.
*The cables are available 4 m length.
Features & Benefits
- Guaranteed performance up to 480 Mbit/s (USB 2.0 compatibility)*
- Provide power up to 60 W (@3A/20V)
- Secure locking system if mated with NMC-C*
- Shielded connection – high noise immunity and EMI protection
- Mates with conventional USB-C receptacles
Downloads
Technical Information
| Product | |
|---|---|
| Title | NMK-048U-* |
| Description | *Please note: The USB system performance may vary depending on additional hardware and software components. |
| Electrical | |
|---|---|
| Rated current per contact | 3 A |
| Rated voltage | 20 V |
| Insulation resistance | 10 MΩ |
| Conductor resistance | 3 Ω |
| Mechanical | |
|---|---|
| Lifetime | 10'000 mating cycles |
| Locking force | 50 N |
| Locking device | Latch lock |
| Material | |
|---|---|
| Contact plating | Au |
| Contacts | Brass (CuZn37) |
| Cable Jacket Type | PVC - Polyvinyl Chloride |
| Shell | TPE - Thermoplastic Elastomer |
| Environmental | |
|---|---|
| Flammability | UL 94 HB |
| Transmission performance | USB 2.0 |
| Temperature range | -25 °C to +85 °C |
| Environmentally Compliant | RoHS and Halogen Free |

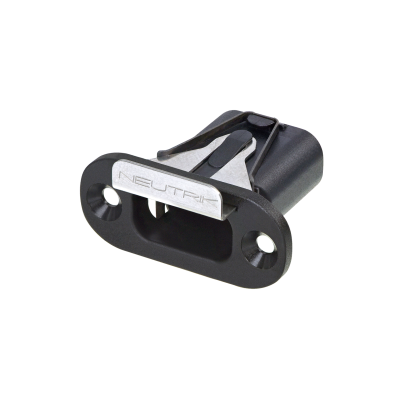

Accessories
