NMC-C-HR

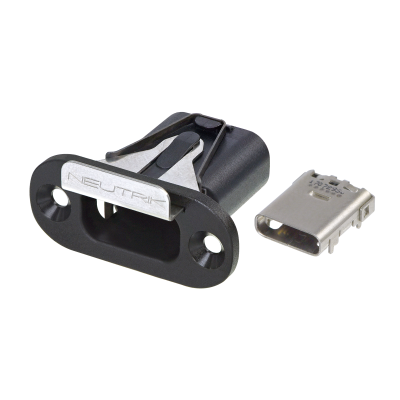

Lockable USB Type-C chassis with integral USB IF approved receptacle
Features & Benefits
- Push Pull mating design provides secure locking system if mated with NMK-20U*
- Reversible USB-C housing
- Front and rear side mountable
- Guiding housing for better protection of receptacles
- USB receptacle in scope of delivery
Downloads
Technical Information
| Product | |
|---|---|
| Title | NMC-C-HR |
| Electrical | |
|---|---|
| Rated current per contact | 5 A |
| Rated voltage | 20 V |
| Transmission Performance | null |
| Mechanical | |
|---|---|
| Body Height | 3.16 mm |
| Body Length | 11.3 mm |
| Body Weight | 9.7 g |
| Orientation | Right Angle |
| PCB Mounting | HYBRID SMT+DIP |
| PCB surface center | 1.58 mm |
| Version | USB3.1 Gen.II |
| Lifetime | 10'000 mating cycles |
| Locking force | 50 N |
| Locking device | Latch lock |
