D Series

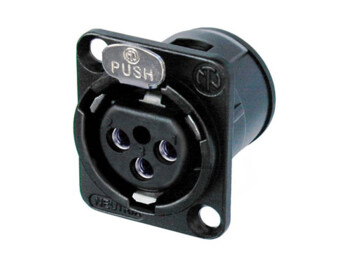

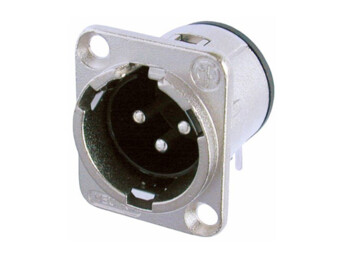

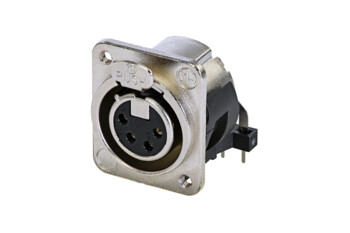

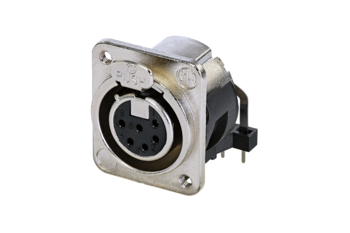

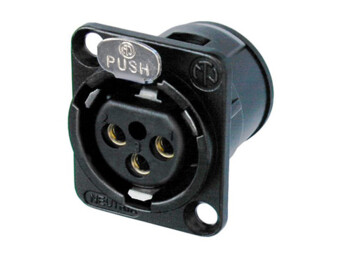

Universal metal body XLR pcb mount series. Unified D-size shell for male and female. Metal shell and 3 ground contacts offer RF protection. Insert is removable from shell for ease assembling. Available in nickel or black housing and silver or gold plated contacts. UL recognized component.

Termination

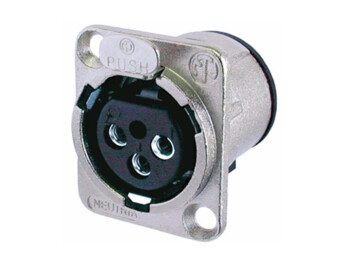

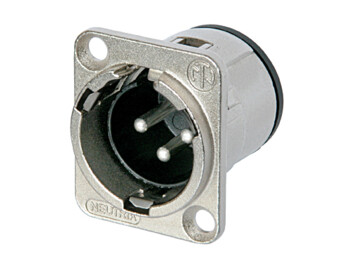

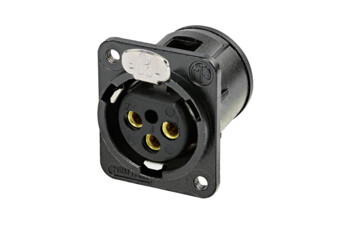

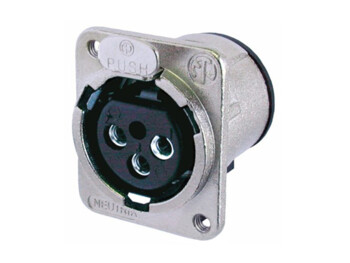

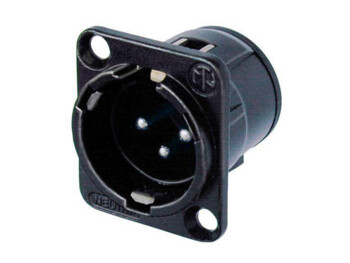

V = vertical pcb mount, straight pins

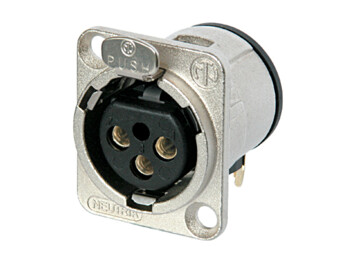

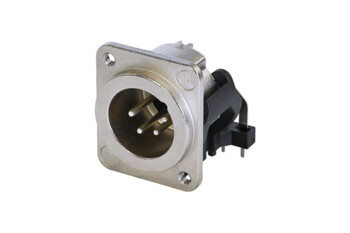

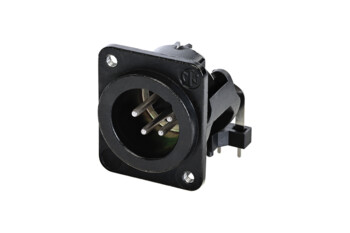

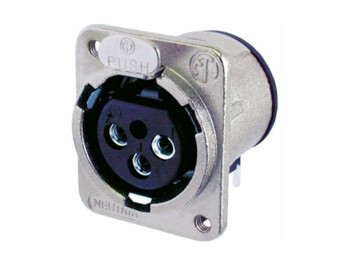

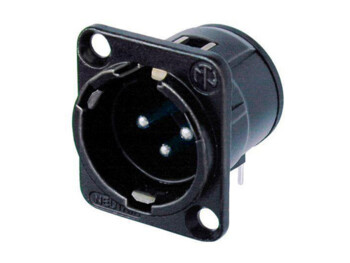

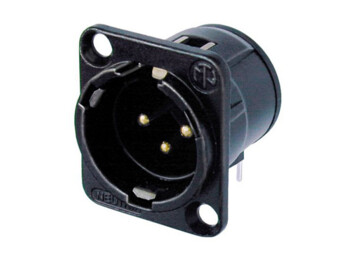

H = horizontal pcb mount, angled pins

Locking mechanism
Latch lock

Grounding
Separate ground contact to mating connector shell and front panel

Front and rear panel mount

Fastening
Panel
Standard: Countersunk mounting holes to accept M3 bolts or rivets

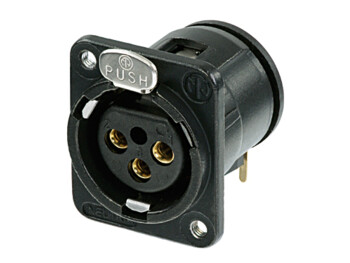

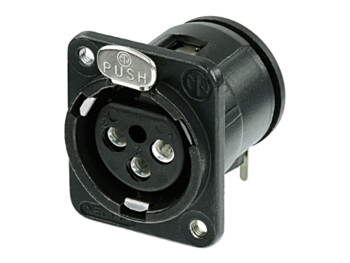

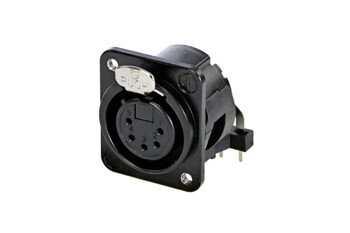

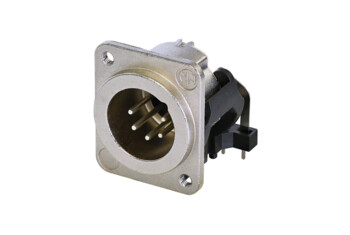

M3 version: M3 tapped thread

Insert on PCB
Self tapping screw, diameter 2.2 mm, max. length 5 mm (e.g. KA22x5)

Panel thickness 1 - 3 mm
