NC3FD-V

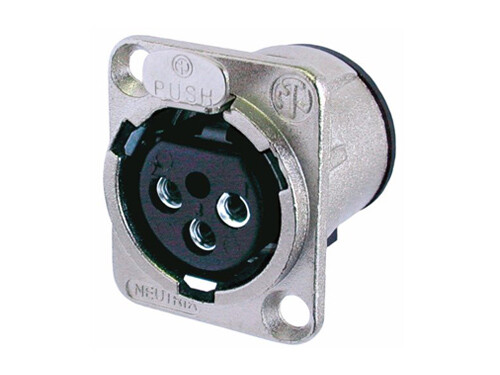

3 pole female receptacle, vertical PCB mount, Nickel housing, silver contacts

Universal D-size metal body XLR panel mount series for pcb mount applications. Insert is removable from shell for ease assembling. UL recognized component.

Features & Benefits

D-shape metal shell
Optimal RF protection using 3 shield contacts.
Insert is removable from rear of connector and locked into place by internal latch - permitting assembling and testing of pcb before assembling into housing
Front or rear panel mount

Downloads

Certificate UL E135070 (2023-11-10)

pdf - 224.13 KB

bda-020---d-serie-xlr-chassis-connector

pdf - 2.44 MB

01 NEUTRIK Section XLR Connectors PG EN 202202-V23_opt

pdf - 3.6 MB

UL Certificate of Compliance 2024

pdf - 308.18 KB

Technical Information

Product
Title	NC3FD-V
Connection Type	XLR
Gender	female

Electrical
Capacitance between contacts	≤ 4 pF
Contact resistance	≤ 5 mΩ
Dielectric strength	1,5 kVdc
Insulation resistance	> 10 GΩ (initial)
Rated current per contact	6 A
Rated voltage	< 50 V

Mechanical
Insertion force	≤ 20 N
Withdrawal force	≤ 20 N
Lifetime	> 1000 mating cycles
Wiresize
Wiring	vertical PCB mount
Locking device	Latch lock
Mounting direction	Rear mounting
Chassis shape	D

Material
Contact plating	2 µm Ag over 2 µm Ni
Contacts	Bronze (CuSn6)
Insert	PA66
Locking element	Steel Ck67
Locking element plating	Nickel
Shell	Zinc diecast (ZnAl4Cu1)
Shell plating	Nickel

Environmental
Approvals	UL
Flammability	UL 94 V-0
Standard compliance	IEC 61076-2-103
Protection class	IP 40
Solderability	Complies with IEC 68-2-20
Temperature range	-30 °C to +80 °C
