NC5MDM3-H-1

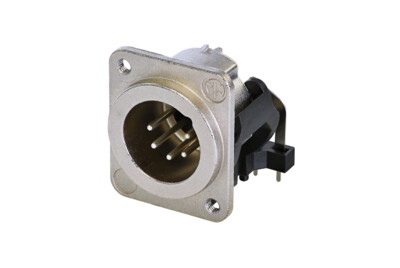

5 pole male receptacle, horizontal PCB mount, nickel housing, silver contacts, M3 mounting holes
Features a compact all metal housing with an ingenious duplex ground contact, which offers an excellent RF protection and shielding.
Insert is NOT removable from shell.
Features & Benefits
- All metal housing offer the best RF protection and an electromagnetic shielding.
- Duplex ground contact for an excellent contact integrity between chassis and cable connector
- The male connector retention bar replaces the plastic design with an all metal version improving the pull-out-force.
- Optional connection to easily join pin1 to chassis ground
- D-style housing provides installation compatibility with industry standard D mounting dimensions
- Insert is NOT removable from shell.
- PCB mount termination
Technical Information
| Product | |
|---|---|
| Title | NC5MDM3-H-1 |
| Connection Type | XLR |
| Gender | male |
| Electrical | |
|---|---|
| Capacitance between contacts | ≤ 7 pF |
| Contact resistance | ≤ 5 mΩ |
| Dielectric strength | 1.5 kVdc |
| Insulation resistance | > 10 GΩ (initial) |
| Rated current per contact | 7.5 A |
| Rated voltage | < 50 V |
| Mechanical | |
|---|---|
| Insertion force | ≤ 20 N |
| Withdrawal force | ≤ 20 N |
| Lifetime | > 1000 mating cycles |
| Wiring | Horizontal PCB mount |
| Locking device | Latch lock |
| Mounting direction | Rear mounting |
| Chassis shape | D |
| Mounting | Mounting holes with M3 threads |
| Material | |
|---|---|
| Contact plating | Ag |
| Contacts | Brass (CuZn39Pb3) |
| Insert | Polyamide (PA 6.6 30 % GR) |
| Locking element | Steel Ck67 |
| Shell | Zinc diecast (ZnAl4Cu1) |
| Shell plating | Nickel |
| Environmental | |
|---|---|
| Flammability | UL 94 V0 |
| Temperature range | -30 °C to +80 °C |
