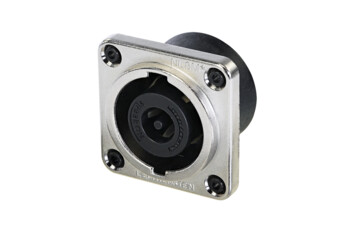

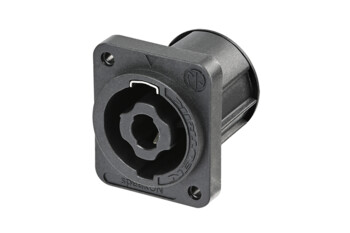

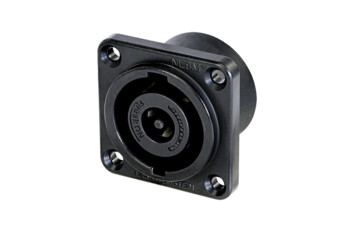

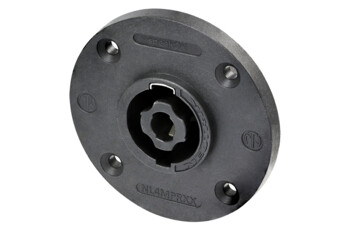

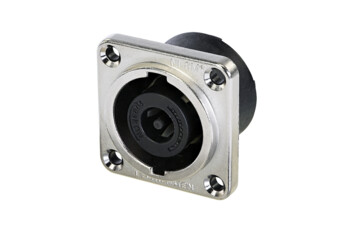

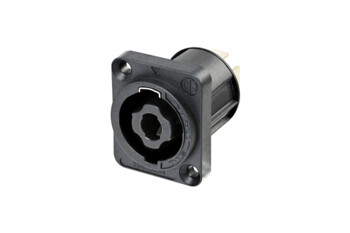

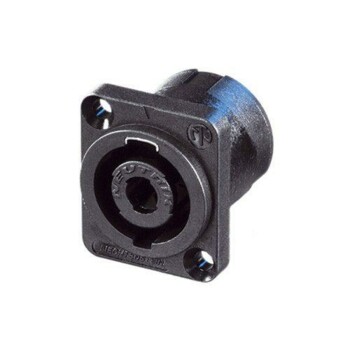

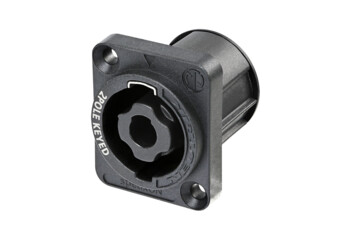

speakON® Chassis Connectors

The speakON panel mount connectors are the standard chassis connectors for loudspeaker / amplifier interconnections. They feature a unique metal locking system, making contact only once fully locked. The speakON receptacles are robust, versatile and easy to terminate. The chassis connectors are suitable for audio applications with an air leakage rate of 30 cm3/s at 10 kPa differential pressure, unless otherwise stated.

Termination
No suffix = solder termination or 3/16" flat tabs

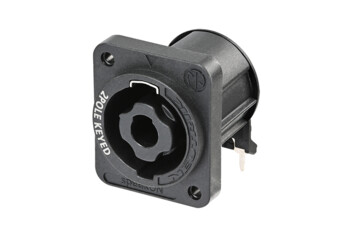

H = horizontal pcb mount,

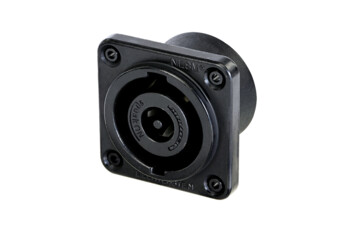

V = vertical pcb mount, straight pins

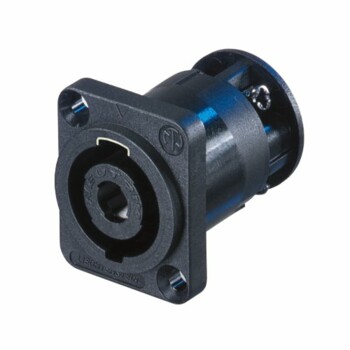

ST = screw terminal

Panel mount
Front and rear

Panel fastening
Standard: Countersunk mounting holes to accept M3 bolts or rivets
M3: M3 threaded insert
PCB mount: Self-tapping PLASTITE®* screw with thread 2.9 x 1.06 mm and of tri-rondular configuration (A-screw)
*PLASTITE® is a registered trademark of SFS Unimarket
