NL4MDXX-V-2

Download Data Sheet

This connector is fully compliant to the device standard IEC 62368-1, due to its component certification according to IEC 61984.

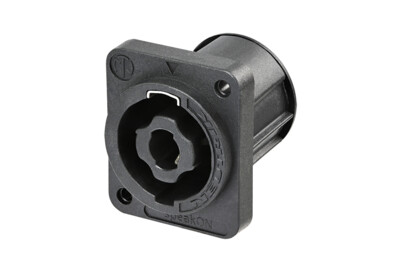

4 pole chassis connector, black D-size flange, mirrored self tapping screw holes (A-screw), vertical PCB mount.

The speakON panel mount connectors are the standard chassis connectors for loudspeaker / amplifier interconnections. They feature a unique metal locking system, making contact only once fully locked. The speakON receptacles are robust, versatile and easy to terminate.

Features & Benefits
  • IEC 61984 certified > IEC 62368-1 compliant
  • Glass reinforced V-0 materials make it extremely robust and dependable
  • Precise keyway for secure mating
  • Accurate twist lock latching system
  • Metal insert in locking area
Downloads
BDA 596 V1 - speakON NL4MDXX-V and NL4MDXX-V-2 and NL4MDXX-V-3
pdf - 288.9 KB
BDA 591 V1 - Assembly recommendation of speakON chassis connector
pdf - 318.08 KB
st-nl4mdxx-v-2
pdf - 158.26 KB
st-nl4mdxx-v-2
dxf - 1.41 MB
nl4mdxx-v-2
stp - 3.21 MB
CB_Cert_SE-100963A1M1
pdf - 84.88 KB
Certificate_ENEC_40052110 (2024-06-11)
pdf - 307.3 KB
Certificate ETL_104216254ATL-001A_240425_ATM (2024-04-25)
pdf - 117.47 KB
03 Section speakON PG EN 202202-V23
pdf - 5.55 MB

Technical Information

Product
Title NL4MDXX-V-2
Gender male
Electrical
Contact resistance ≤ 2 mΩ
Dielectric strength 2.8 kVac
Insulation resistance >0.1 GΩ (after dampheat)
Rated current per contact 25 A rms continuous (audio rating significantly higher, depending on signal)
Rated voltage 250 V ac
Attention speakON is NOT to be used as an AC mains or power supply connector!
Mechanical
Lifetime > 5000 mating cycles
Wiring vertical PCB mount
Locking device Quick Lock
Mounting direction Rear mounting
Chassis shape D
Layout Mirrored hole position, self tapping screw holes (A-Screw)
Material
Contact plating Ag
Locking element Stainless Steel
Shell Polyamide (PA 6.6)
Contacts Copper Alloy
Shell coating Black KTL
Environmental
Flammability UL 94 V-0
Temperature range -30 °C to +80 °C
