neutrik > Products > NL4MPXX

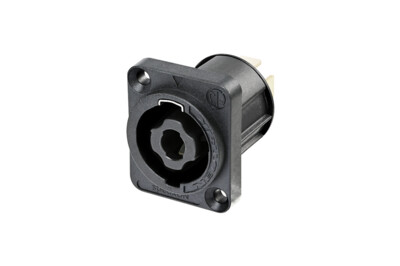

NL4MPXX-UC

NL4MPXX

This connector is fully compliant to the device standard IEC 62368-1, due to its component certification according to IEC 61984.

4 pole chassis connector, black D-size flange, countersunk thru holes, 3/16" flat tabs.

The speakON panel mount connectors are the standard chassis connectors for loudspeaker / amplifier interconnections. They feature a unique metal locking system, making contact only once fully locked. The speakON receptacles are robust, versatile and easy to terminate.

Download Data Sheet
Selection of topics
Features & Benefits Downloads Technical Information Accessories
Download Data Sheet

Features & Benefits

  • IEC 61984 certified > IEC 62368-1 compliant
  • Glass reinforced V-0 materials make it extremely robust and dependable
  • Precise keyway for secure mating
  • Accurate twist lock latching system
  • Metal insert in locking area
  • Airtight design - optimized for speaker applications

Downloads

  • Assembly Instruction - speakON NL4MPXX & NL4MPXX-3
  • Assembly recommendation of speakON chassis connector
  • Drawing NL4MPXX
  • Drawing NL4MPXX
  • 3D File NL4MPXX
  • IEC 61984 CB Certificate
  • Product Guide - Section Loudspeaker Connectors

Links

  • Intertek Certificate UL-1977 REC
  • Intertek Certificate CAN/CSA-C22.2 No. 182.3 REC

Technical Information

Product
Title NL4MPXX
Gender male
Electrical
Contact resistance ≤ 2 mΩ
Dielectric strength 2.8 kVac
Insulation resistance >0.1 GΩ (after dampheat)
Rated current per contact 25 A rms continuous (audio rating significantly higher, depending on signal)
Rated voltage 250 V ac
Attention speakON is NOT to be used as an AC mains or power supply connector!
Mechanical
Lifetime > 5000 mating cycles
Termination 3/16" flat tabs (e.g. NLFASTON)
Locking device Quick Lock
Chassis shape D
Layout standard hole position, thru holes
Material
Contact plating Ag
Locking element Stainless Steel
Shell Polyamide (PA 6.6)
Contacts Copper Alloy
Environmental
Flammability UL94 V-0
Temperature range -30 °C to +80 °C

Accessories

dummyPLUG Case
CAS-DUMMY
MFD
MFD
NDL
NDL
nlfaston
NLFASTON
SCDP
SCDP-*
SCDR
SCDR
SCDX geschlossen
SCDX
SCL
SCL
SCCD-W
SCCD-W
SCD-W
SCD-W
