neutrik > Produkte > etherCON RJ45 Steckverbinder > etherCON Einbaubuchsen > etherCON TOP Serie > NE8FDV-TOP

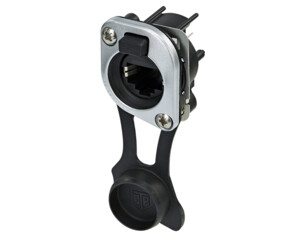

NE8FDV-TOP_open

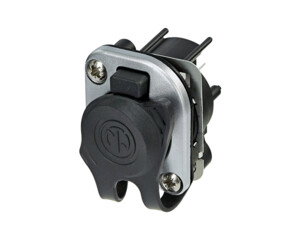

NE8FDV-TOP_closed

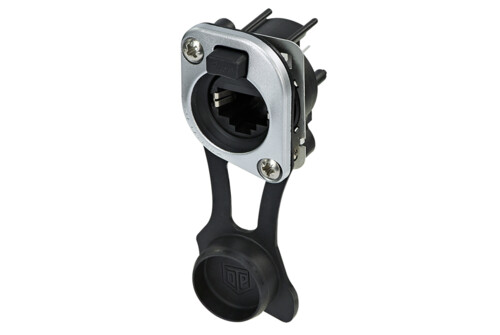

NE8FDV-TOP_open

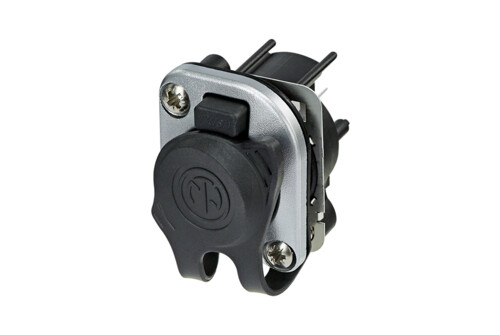

NE8FDV-TOP_closed

NE8FDV-TOP

Vertical PCB panel mount RJ45 receptacle, combined with sealing kit SE8FD-TOP, max. panel thickness 4 mm, mounting screws included.

The etherCON series is a ruggedized and lockable RJ45 connector system, optimized for pro audio, video and lighting network applications with IP65 rating and UL 50E certification. The chassis connectors are shaped to fit into standardized panels out of the entertainment industry. The D-series offers the most rugged design of the etherCON series and is perfectly suitable for panel mount and the installer market.

ATTENTION: Does not intermate with CAT6 cable connector NE8MC6-MO and NKE6S* cables.

Datenblatt Download
Auswahl Themen
Features & Benefits Downloads Technische Informationen Zubehör
Datenblatt Download

Features & Benefits

  • IP65 rating and certified outdoor protection to UL 50E (in combination with NE8MX-TOP or sealing cap closed)
  • Uses high impact UV-resistant and gasket materials
  • Accomodates NE8MCX* or any standard RJ45 plug
  • Class D or CAT5e according to ISO/IEC 11801 and TIA/EIA
  • Approved latch lock system
  • Mountable from the front of the panel
  • Ground panel connection

Downloads

  • Strichzeichnung NE8FDV-TOP
  • Strichzeichnung NE8FDV-TOP
  • 3D File NE8FDV-TOP Flange
  • 3D File NE8FDV-TOP Body
  • Montageanleitung - etherCON NE8FDV-TOP
  • Produktbroschüre TOP
  • UL Certificate etherCON TOP

Links

  • UL Certificate (ECBT2.E501349)
  • cUL Certificate (ECBT8.E501349)

Technische Informationen

Produkte
Title NE8FDV-TOP
Gender female
Elektrisch
Contact resistance < 50 mΩ
Dielectric strength 1 kVdc
Frequency range 1 - 100 MHz
Insulation resistance > 0.5 GΩ
Rated current per contact 1.5 A
Rated voltage < 50 V
Transmission performance Class D
Standard compliance TIA/EIA 586B, IEC11801
Mechanische Daten
Insertion force ≤ 20 N
Withdrawal force ≤ 20 N
Lifetime > 1000 mating cycles
Panel thickness 2 mm - 4 mm , 0.08" - 0.16"
Wiring vertical PCB mount
Locking device Latch lock
Material
Contact plating 0.2 µm Au over Ni plating
Contacts Bronze (CuSn8)
Insert PBTP 15 % GR
Shell Zinc diecast (ZnAl4Cu1)
Shell plating Chromium
Umwelt
Flammability UL 94 V-0
Solderability Complies with IEC 68-2-20
Temperature range -30°C to +80 °C
Protection class IP65, UL50E enclosure type 4 (mated or sealing cap closed)
