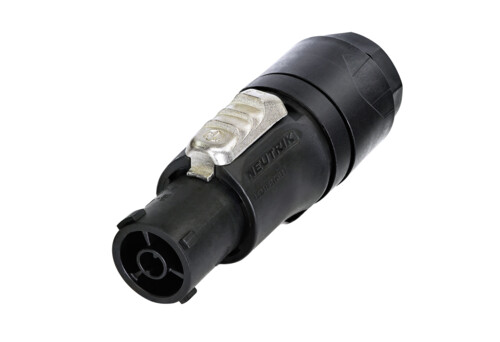

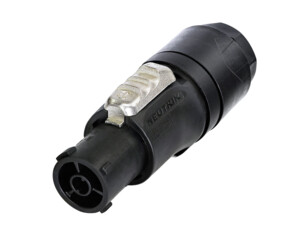

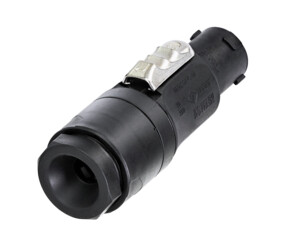

NAC3FX-W-TOP-L
PHASE OUT
direct replacement / successor: NAC3F-TRUE1-L
Verriegelbare Kabelbuchse für dicke Netzkabel mit Durchmessern von 10–16 mm. Zertifiziert nach EN/UL 60320-1 für den Gebrauch mit den Kabeltypen H07RN-F3G2.5 oder SOOW 12/3 (USA). Schutzart IP65 und Strombelastbarkeit bis 16 A.
Die powerCON TRUE1 TOP Serie ist eine Steckvorrichtung für Außenanwendungen und darf unter Last und Spannung ein- und ausgesteckt werden.
Features & Benefits
- Kabelaußendurchmesser 10 bis 16 mm
- Normkonform IEC EN 60320-1 und UL 60320-1; d. h. anerkannte Komponente für Kabelsets IEC 60799 und Geräte nach IEC 62368-1
- Speziell abgedichtete Netzsteckvorrichtung für
hohe Beanspruchung in rauer Umgebung - TOP True Outdoor Protection
- Einphasig, unter Last steckbar (20 A 250 VAC)
- Extrem robuste und zuverlässige Zugentlastung
- Superior NEUTRIK Qualitätsstandard
Downloads
BDA 624 V5 - powerCON Cable Connector Female NAC3FX-W-TOP-L
pdf - 4.88 MB
Application Note TRUE1-TOP-L V2 20220128
pdf - 102.47 KB
Certificate UL E343813 (2023-01-03)
pdf - 202.49 KB
Neutrik TOP Products - NF23 V07 202111
pdf - 5.03 MB
BDA 556 V3 - powerCON TRUE1 TOP Cable Connector - Operating Instruction
pdf - 4.93 MB
BDA 557 V3 - powerCON TRUE1 TOP Power IN - Operating Instruction
pdf - 4.98 MB
BDA 559 V3 - powerCON TRUE1 TOP SAFETY NOTICE
pdf - 5.05 MB
VDE Certificate ENEC10VDE NAC3FX-W-TOP NAC3FX-W-TOP-L
pdf - 310.98 KB
Technical Information
| Produkte | |
|---|---|
| Title | NAC3FX-W-TOP-L |
| Connector series | powerCON TRUE1 TOP |
| Elektrisch | |
|---|---|
| Dieletric strength | 2.8 kVac |
| Insulation resistance | > 0.1 GΩ |
| Number of electronical contacts | 2 + PE |
| Rating Europe | IEC EN 60320-1: 16 A 250 V AC |

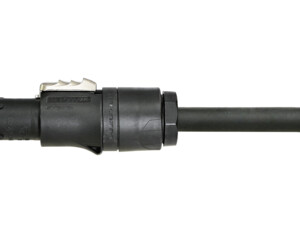

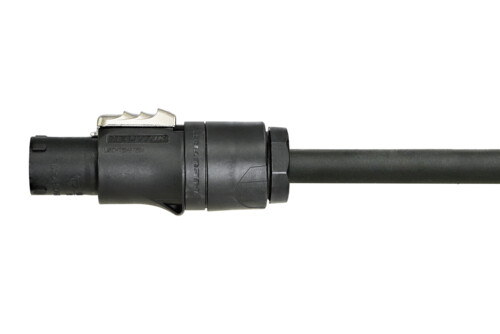

| Certified with cable types: H07RN-F3G2.5 | |
| Rating USA | UL 60320-1 & C22.2 No. 60320-1:19: 20 A 250 V AC |
| Certified with cable types: | |

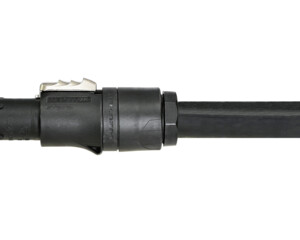

| - SOOW 12/3, SOOW 14/3 | |
| - SJOOW 12/3 | |
| Mechanische Daten | |
|---|---|
| Cable O.D. | 10 – 16 mm (0.39 – 0.63 inches) |
| Lifetime | Typically 5’000 mating cycles |
| Wire size (mm²) | 2.5 mm² |
| Wire size (AWG) | 14 – 12 AWG |
| Material | |
|---|---|
| Contact plating | 2 µm Ag |
| Contacts | Bronze (CuSn0.2) |
| Insert | Polyamide (PA 6.6 30 % GR) |
| Locking element | ZuAl4Cu1 |
| Shell | Polyamide (PA 6.6 30 % GR) |
| Strain relief | Polyacetal (POM) |
| Umwelt | |
|---|---|
| Flammability | UL 94 V-0 |
| Protection class | IP65, UL50E enclosure type 4 (mated) |
| Temperature range | -30 °C to +80 °C |
Accessories
HTLACA
Handwerkzeug zum Festziehen der Buchse der powerCON TRUE1 TOP, FXX und speakON FXX Serie.
HTLACB
Hand tool for tightening the bushing of the powerCON TRUE1 TOP, FXX and speakON FXX series
SCNAC-FX
The rubber sealing cover protects the powerCON TRUE1 TOP NAC3FX-W-TOP from dust and water according to protection class IP65.
SCF-TRUE1-01
Ruggedized sealing cover (female) with ergonomic design for powerCON TRUE1 TOP cable connectors
Montage/Assemblierung
Features powerCON® TRUE1® TOP L
Product related questions and answers
| Question | Answer |
| Is the new cable entry patented? | There is a patent application in process which is related to the cable entry section. |
| How are the certifications different to the current version NAC3*X-W-TOP? | EN certification: Both versions are certified according to EN 60320-1. The new L-version however is certified for large cables as follows: H07RN-F 3G 2,5 mm² The old version is certified for cable types: H07RN-F 3G 1,5 mm² and H05VV-F 3G 1,0 - 2,5 mm² UL certification: The new L-version is certified according to UL 60320-1 for cables SOOW 12/3 and SOOW 14/3. The old version is certified according to UL 498. JET certification: Both versions are JET certified. |
| What are the mechanical differences to the current version NAC3*X-W-TOP? | The whole cable entry section had to be redesigned in order to: - To cover the large cable range (10 - 16mm) - To meet the standards requirement to prevent disassembling by hand - To improve the assembly process The housing and insert parts are the same |
| When is the IEC 60799 relevant? | This standard applies for "Cord Sets And Interconnection Cord Sets" and therefore covers cables to the mains and cables acting as power interconnections. |
| Why is the bushing loose in one direction? | This is to meet the standards requirement to prevent disassembling by hand. In order to open the cable entry a special tool will be required. |
