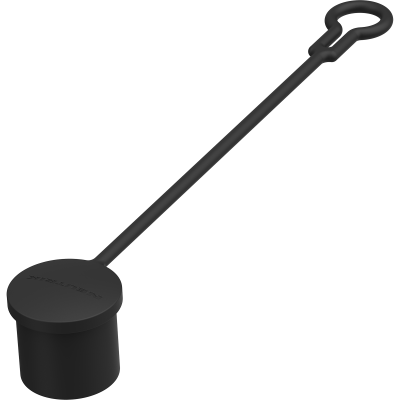

Dichtkappe_SCNAC-FX_persp front liegend_RGB_WEB

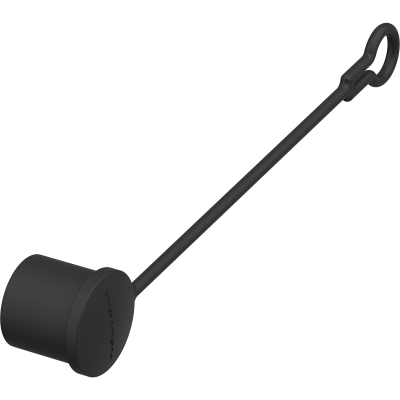

Dichtkappe_SCNAC-FX_persp front liegend seitlich_RGB_WEB

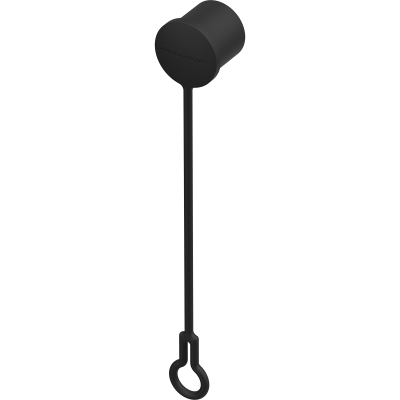

Dichtkappe_SCNAC-FX_persp front stehend_RGB_WEB
1/3
neutrik / Produkte / Zubehör / Dichtungszubehör / SCNAC-FX

SCNAC-FX

Datenblatt Download

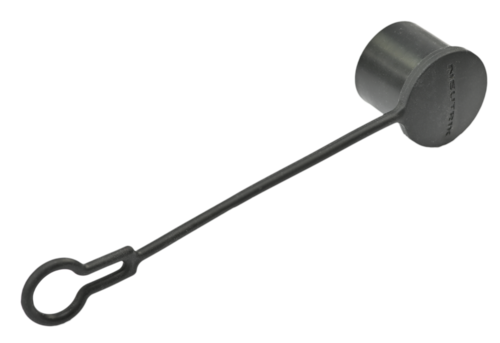

The rubber sealing cover protects the powerCON TRUE1 TOP NAC3FX-W-TOP from dust and water according to protection class IP65.

Features & Benefits
  • User friendly
  • Mountable on assembled Cable
  • Protection class: IP 65
  • UV-resistant material for use in harsh outdoor environments
Downloads
scnac-fx
stp - 498.12 KB
SCNAC-FX
pdf - 52.37 KB
SCNAC-FX
dxf - 2.57 MB
BDA_657_V1-Sealing_Caps_for_Cable_Connectors_SCNAC-FX-MX-TOP
pdf - 964.87 KB

Technical Information

Produkte
Title SCNAC-FX
Material
Material EPDM
Color Black
Umwelt
Flammability acc. to UL 94 HB
Protection class acc. to IEC 60529 IP 65
