neutrik > Produkte > opticalCON Glasfaser-Verbindungssystem > opticalCON DRAGONFLY > opticalCON DRAGONFLY Kabel > opticalCON DRAGONFLY Kabel female - male

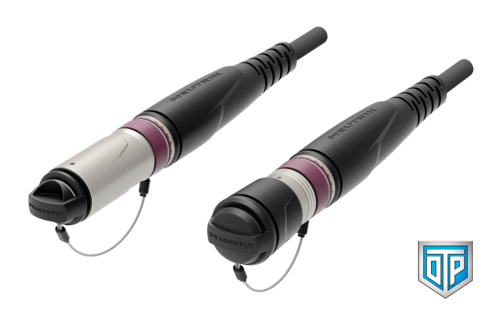

opticalCON DRAGONFLY connectors

opticalCON DRAGONFLY Kabel female - male

Vorkonfektioniertes SMPTE-Kabel (female | male) in Linsentechnologie mit 2 Single-Mode-Ferrulen und 4 Kupferkontakten.

DRAGONFLY ist robuster, zuverlässiger und wartungsärmer als andere Hybrid-Kabel zur Übertragung von Kamera-Signalen. Mit Linsen-Technologie und Fusion Splicing gewährleistet Neutrik's DRAGONFLY ein äusserst stabiles Signal bei geringstem Verlust. Darüber hinaus schützen die Linsen und eine zusätzliche Dichtkappe wirkungsvoll gegen Verschmutzung und Staub.

Die Kabel werden anschlussfertig geliefert, Ersatzteile sind einzeln erhältlich. Die passenden Einbausteckverbinder für die Kabel sind NO2MW-XP und NO2FW-XP.

Datenblatt Download
Auswahl Themen
Features & Benefits Downloads Verfügbare Kamerasysteme Technische Informationen
Datenblatt Download

Features & Benefits

  • Geeignet für Kamera-Verbindungen nach SMPTE bei Innen- und Aussenanwendungen (Studio, Übertragungswägen)
  • Wassergeschützt nach IP68 in gestecktem Zustand
  • Robustes und verschmutzungsunempfindliches Hybrid-Verbindungssystem
    - 2 LWL Anschlüsse in einzigartiger Linsentechnologie
    - 2x Signal
    - 2x Versorgung
    - 1x GND
  • Einzigartiger Linsenstecker in Fusion-Splice-Technologie
  • Robust und zuverlässig: Metallgehäuse, durchgehende Kupfergeflechtschirmung, Verstärkungselement aus Edelstahl, starker Mantel aus schwarzem PUR, gefederte Push-Pull-Verriegelung und hohe Zugentlastung
  • Hervorragender Verschmutzungs- und Staubschutz
  • Erhältlich in verschiedenen Längen, aufgetrommelt, lose aufgewickelt oder im Koffer (siehe Tabelle unten)
  • Einfache Wartung

Downloads

  • Strichzeichnung NO2SFX-XP
  • Strichzeichnung NO2SFX-XP
  • 3D Drawing NO2SFX-XP (STP)
  • Strichzeichnung NO2SMX-XP
  • Strichzeichnung NO2SMX-XP
  • 3D File NO2SMX-XP
  • Bedienungsanleitung - opticalCON DRAGONFLY Kabel
  • Technical Paper - opticalCON DRAGONFLY
  • DRAGONFLY Application Instruction
  • NEUTRIK DRAGONFLY Folder 2022-06, lang.: EN
  • DRAGONFLY Business Case - Sales Comparison
  • CB Certificate DRAGONFLY
  • EU Declaration of Conformity CE - DRAGONFLY
  • UKCA Declaration of Conformity DRAGONFLY

Schnittbild Kabel

DRAGONFLY - Cabledrowing

Optionen und max. Kabellängen

opticalCON-DRUM-Packagin---013456

Verfügbare Kamerasysteme

SONY: HDC, HSC (discontinued), HXC (discontinued)
GRASS VALLEY: LDX82, LDX85N, LDX100/150, LDX86, LDX86N
MULTIDYNE: SILVERBACK V Camera Adaptor
IKEGAMI: UHK-430/CCU-430, UHK-X700/BSX-100
​PANASONIC: AK-UC, AK-HC

Technische Informationen

Produkte
Title NKO2S-XP-0-*
Gender male/female
Elektrisch
Contact resistance < 7 mΩ
Insulation resistance > 10 GΩ (initial)
Mains 240V AC / 10A / 50Hz
120V AC / 10A / 60Hz
300V DC / 7A
Sense 42V AC peak / 1-3A / ≤1kHz
60V DC / 1-3A
Mechanische Daten
Cable retention 500 N
Insertion force < 45 N
Withdrawal force < 45 N
Lifetime 10'000 mating cycles
Wiresize Power 4 x 20 AWG
Wiresize Sense 2 x 24 AWG
Locking device Push-Pull
Material
Boot Rubber (EPDM)
Bushing Zinc diecast (ZnAl4Cu1)
Contacts Brass
Insert Polyetherimide and Polycarbonate (PEI+PC)
Shell Zinc diecast and Polyoxmethylen
Shell plating Nickel
Strain relief Brass
Umwelt
Flammability UL94 V-0
Protection Class IP68 , UL50E enclosure type 4 (mated with sealing KIT SCXP-*)
Certification according to IEC 61984:2009
IEC 60529
UL 1977 :2019
CSA C22.2 No. 182.3 :2016
UL50E Type 4
Salzsprühnebeltest Evaluated according to UL50E
UV-Test Evaluated according to UL50E
Optical
Insertion loss Typ. 0.6 dB per connection / Max. 1.0 dB per connection
Optical connector XB2 Feedthrough
