neutrik > Produkte > powerCON > powerCON TRUE1 TOP > powerCON TRUE1 TOP Einbausteckverbinder > NAC3MPX-WOT-TOP
NAC3MPX-WOT-TOP

NAC3MPX-WOT-TOP

Appliance inlet connector, 1/4" flat tab terminals, without insulation divider

The powerCON TRUE1 TOP is a locking 16 A true mains connector for outdoor applications. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection.

The powerCON TRUE1 TOP is a connector with breaking capacity (CBC), i.e. it can be connected or disconnected under load or live.

Datenblatt Download
Auswahl Themen
Features & Benefits Downloads Technische Informationen Zubehör
Datenblatt Download

Features & Benefits

  • IP65, UL50E enclosure type4 rating in combination with SCNAC-MPX (mated or with closed cap)
  • Heavy duty sealed power connector for harsh and demanding environment
  • ​Uses high impact UV-resistant materials
  • True mains connector with breaking capacity (CBC)
  • Lockable 16 A single phase connector (USA: 20 A)
  • Easy and reliable twist lock system
  • Extremely robust and reliable
  • Unique Neutrik cable retention
  • ENEC certified according to IEC 60320
  • UL498 certified

Downloads

  • 3D File NAC3MPX-WOT-TOP
  • Strichzeichnung NAC3MPX-WOT-TOP
  • Strichzeichnung NAC3MPX-WOT-TOP
  • Montageanleitung - powerCON TRUE1 TOP NAC3MPX-TOP + NAC3MPX-WOT-TOP
  • Produktbroschüre TOP
  • UL Certificate NAC3MPX-TOP and NAC3MPX-WOT-TOP
  • ENEC/VDE Certificate NAC3MPX-WOT + NAC3MPX-WOT-TOP
  • CB Certificate NAC3MPX-WOT + NAC3MPX-WOT-TOP

Links

  • UL Certificate (ECBT2.E343813)
  • cUL Certificate (ECBT8.E343813)

Technische Informationen

Produkte
Title NAC3MPX-WOT-TOP
Elektrisch
Contact resistance ≤ 2 mΩ
Dielectric strength 4 kVdc / 2.8 kVac
Insulation resistance > 1 GΩ (after damp heat test)
Number of electrical contacts 2 + PE
Rating Europe EN 60320-1: 16 A 250 V AC
Rating USA UL 498: 20 A 250 V AC
Mechanische Daten
Lifetime > 5000 mating cycles
Wiresize 2.5 mm²
Wiresize 12 AWG
Material
Contact plating 2 µm Ag
Locking element Stainless steel
Shell Polyamide (PA 6.6)
Contacts Spring Copper (CuSn0.2)
Umwelt
Flammability UL 94 V-0
Protection class IP65, UL50E enclosure type4 rating in combination with SCNAC-MPX (mated or with closed cap)
Temperature range -30 °C to +80 °C

Zubehör

SCNAC-MPX
SCNAC-MPX
SCCD-W
SCCD-W
MFD
MFD

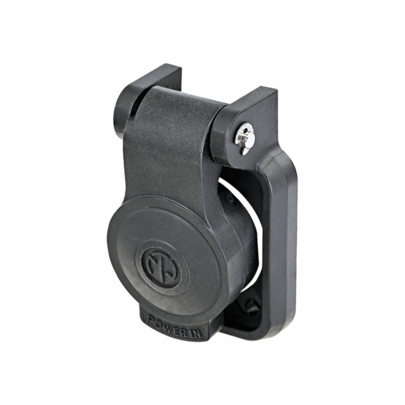

NSSC-1
NSSC-1
