NAC3FPX-ST-TOP

NAC3FPX-ST-TOP

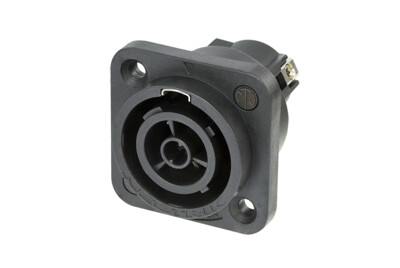

Geräteeinbausteckdose, Power-out; Schraubklemmen

Die powerCON TRUE1 TOP Serie ist eine Steckvorrichtung für Außenanwendungen mit einer Strombelastbarkeit bis 16 A. Sie darf unter Last und Spannung ein- und ausgesteckt werden.

Mit powerCON TRUE1 TOP können Kaltgerätestecker ersetzt werden, wenn eine besonders robuste Verbindung mit Verriegelung benötigt wird, um eine sichere Versorgung zu gewährleisten.

Datenblatt Download
Auswahl Themen
Features & Benefits Downloads Technische Informationen Zubehör
Datenblatt Download

Features & Benefits

  • Speziell abgedichtete Netzsteckvorrichtung für hohe Beanspruchung in rauer Umgebung mit hohen Anforderungen

  • IP65, UL50E (NEMA4) Rating in Kombination mit SCNAC-FPX (gesteckt oder mit geschlossener Kappe)

  • UV-beständiges Material

  • Netzsteckvorrichtung unter Last steckbar

  • Einphasiger Kabelstecker für max. 16 A (USA: 20 A)

  • Einfache und zuverlässige Twist-Lock-Verriegelung

  • Äußerst robust und zuverlässig

  • IEC 60320 zertifiziert (VDE, ENEC)

  • UL498-zertifiziert

Downloads

  • 3D File NAC3FPX-ST-TOP
  • Strichzeichnung NAC3FPX-ST-TOP
  • Strichzeichnung NAC3FPX-ST-TOP
  • Montageanleitung - powerCON TRUE1 TOP NAC3FPX-ST-TOP
  • Produktbroschüre TOP
  • UL Certificate NAC3FPX-TOP, NAC3FPX-WOT-TOP, NAC3FPX-ST-TOP

Links

  • UL Certificate (ECBT2.E343813)
  • cUL Certificate (ECBT8.E343813)

Technische Informationen

Produkte
Title NAC3FPX-ST-TOP
Elektrisch
Contact resistance ≤ 2 mΩ
Dielectric strength 4 kVdc / 2.8 kVac
Insulation resistance > 1 GΩ (after damp heat test)
Number of electrical contacts 2 + PE
Rating Europe EN 60320-1: 16 A 250 V AC
Rating USA UL 498: 20 A 250 V AC
Mechanische Daten
Lifetime > 5000 mating cycles
Wiresize 2.5 mm²
Wiresize 14 AWG
Wiring screw terminals
Material
Contact plating 2 µm Ag
Locking element Stainless steel
Shell Polyamide (PA 6.6)
Contacts Spring Copper (CuSn0.2)
Umwelt
Flammability UL 94 V-0
Protection class IP65, UL50E (NEMA4) Rating in Kombination mit SCNAC-FPX (gesteckt oder mit geschlossener Kappe)
Temperature range - 30 °C - +80 °C

Zubehör

SCNAC-FPX
SCNAC-FPX
NSSC-2
NSSC-2
