neutrik / Produkte / opticalCON® Glasfaser-Verbindungssystem / opticalCON® ADVANCED / opticalCON® DUO / opticalCON® DUO Zubehör / LC Patchkabel

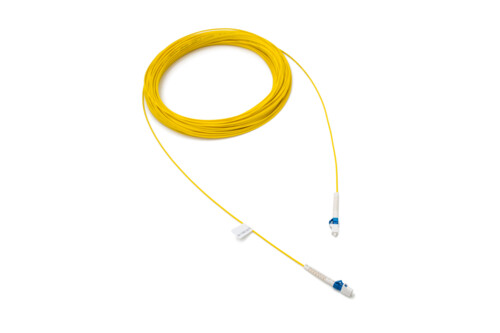

LC Patchkabel

Datenblatt Download

Äusserst leistungsfähiges LC Patchkabel zur Verbindung der Rückseite der opticalCON® DUO oder opticalCON® QUAD und FIBERFOX Einbaubuchsen. Ferrulen garantieren niedrige Einfügedämpfungswerte und optimierte optische Rückflussdämpfungswerte.

Features & Benefits
  • LC Steckverbinder
  • Kompakte Baugrösse
  • Einzigartiges Faserdesign für hohe Kabelleistung
  • Individuelle Längen erhältlich
  • Single- und Multimode
Downloads
Drawing NKOP1 (PDF)
pdf - 52.35 KB

Technische Informationen

Produkte
Title LC patch cable
Umwelt
Temperature range -10 °C to +60 °C (Indoor controlled environment)
Optical
Insertion loss Singlemode: <0,25dB (@1310/1550nm)
Multimode: <0,25dB (@850/1300nm)
Return loss Singlemode: >50dB(UPC) (@1310/1550nm)
Multimode: >30dB (@850/1300nm)
Optical connector LC[PC]
Mobile cable
Outer diameter 2.0mm (approx.)
Jacket material LSZH
Core diameter Multimode 50 µm
Singlemode 9 µm
Cladding diameter 125 µm
Number of fibers 1
Accessories
audio
NO2-4FDW-A - opticalCON DUO ADVANCED CHASSIS CONNECTOR_sideview.png
NO2-4FDW-A

Einbaubuchse, Schwarzchrom Beschichtung, 4 Lötkontakten und 1 LC-Duplex Durchführungsanschluss, wasserdicht gemäss IP65 mit optionaler Schutzkappe SCDP-*

NO4FDW-A - opticalCON QUAD ADVANCED CHASSIS CONNECTOR_topview.png
NO4FDW-A

Einbaubuchse, Schwarzchrom-Beschichtung, Frontplattenbefestigung, wasserdicht gemäss IP65 mit optionaler Dichtung Typ SCDP.

FIBERFOX_NO2M4DW-FX_persp front_RGB_WEB !.png
FIBERFOX EBC15 2CH briDge
FIBERFOX_NO4M4DW-FX_persp front_RGB_WEB !.png
FIBERFOX EBC15 4CH briDge
data
FIBERFOX_NO2M4JW-FG_persp front_RGB_WEB !.png
FIBERFOX EBC25 2CH chassis

FIBERFOX EBC25 2CH chassis in jam-nut design

data
FIBERFOX_NO2SJW-FG-BO_persp front_RGB_WEB !.png
FIBERFOX EBC25 4CH chassis

FIBERFOX EBC25 4CH-Gehäuse im Klemm-Mutter-Design

Ordering Information
Artikelnummer                    BeschreibungVon Stecker        Zu Stecker   LWL
NKOP1S-LC-0-1LC Patch Cable SMLC[PC]LC[PC]Singlemode
NKOP1S-LC-0-2LC Patch Cable SMLC[PC]LC[PC]Singlemode
NKOP1S-LC-0-3LC Patch Cable SMLC[PC]LC[PC]Singlemode
NKOP1S-LC-0-5LC Patch Cable SMLC[PC]LC[PC]Singlemode
NKOP1S-LC-0-10LC Patch Cable SMLC[PC]LC[PC]Singlemode
NKOP1M-LC-0-1LC Patch Cable MMLC[PC]LC[PC]Multimode
NKOP1M-LC-0-2LC Patch Cable MMLC[PC]LC[PC]Multimode
NKOP1M-LC-0-3LC Patch Cable MMLC[PC]LC[PC]Multimode
NKOP1M-LC-0-5LC Patch Cable MMLC[PC]LC[PC]Multimode
NKOP1M-LC-0-10             LC Patch Cable MM              LC[PC]  LC[PC]Multimode
