neutrik > Produkte > XLR Steckverbinder > XLR Kabelsteckverbinder > XX-14 Serie > NC5FXX-14-BAG-D
NC5FXX-14-BAG

NC5FXX-14-BAG-D

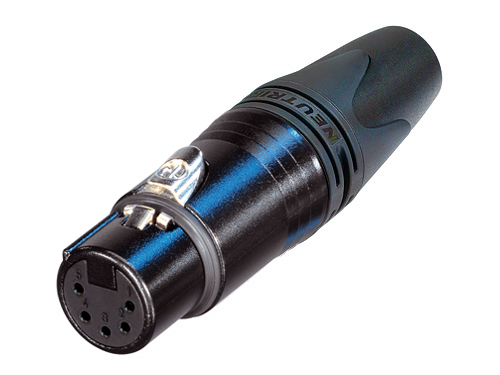

5 pole female cable connector for 8 mm - 10 mm cable O.D. with black metal housing and silver contacts

Special version of the XLR cable connector XX Series for large cable diameters. Incorporating all features of the XX Series.

Bulk packed, to be ordered in multiples of 100.

Datenblatt Download
Auswahl Themen
Features & Benefits Downloads Technische Informationen Zubehör
Datenblatt Download

Features & Benefits

  • Unique cage design of female contact for low contact resistance and high integrity
  • Female contact incorporates a solder barrier to prevent solder running into the contact mating area
  • Female connector with improved solid metal latch which is larger and easier to handle
  • Additional ground spring contacts for better shell ground continuity
  • Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster
  • Boot with polyurethane gland gives high protection to cable bending stresses
  • Colored rings and boots available for coding or identification
  • Sleek and ergonomic design - valuable and handy
  • Rugged zinc diecast shell, longlasting and dependable
  • Internal thread on shell is well protected against any damage

Downloads

  • NC5FXX-14-BAG-D
  • NC5FXX-14-BAG-D
  • NC5FXX-14-BAG-D
  • BDA 198 V2 - NC3FXX-14 & NC3MXX-14
  • Product Guide - Section XLR

Technical Information

Produkte
Title NC5FXX-14-BAG-D
Connection Type XLR
Gender female
Elektrisch
Capacitance between contacts ≤ 7 pF
Contact resistance ≤ 3 mΩ
Dielectric strength 1,5 kVdc
Insulation resistance > 10 GΩ (initial)
Rated current per contact 7,5 A
Rated voltage < 50 V
Mechanische Daten
Cable O.D. 8 mm - 10 mm
Insertion force ≤ 20 N
Withdrawal force ≤ 20 N
Lifetime > 1000 mating cycles
Wiresize (mm²) max. 1.0 mm²
Wiresize (AWG) max. 18 AWG
Wiring Solder contacts
Locking device Latch lock
Material
Boot Polyurethan
Contact plating 2 μm Ag over 2 μm Ni
Contacts Brass (CuZn39Pb3)
Insert Polyamide (PA66)
Locking element Zinc diecast (ZnAl4Cu1) / Ck 67 (spring)
Shell Zinc diecast (ZnAl4Cu1)
Shell coating Black KTL
Strain relief Polyacetal (POM)
Umwelt
Flammability UL 94 V-0
Standard compliance IEC 61076-2-103
Protection class IP 40
Solderability Complies with IEC 68-2-20
Temperature range -30 °C to +80 °C

Zubehör

HTXX-14
HTXX-14
XXR
XXR-*
XXCR
XXCR
