SCNAC-PX
*** DISCONTINUED ***
Direct replacement / successor: SCNAC-04

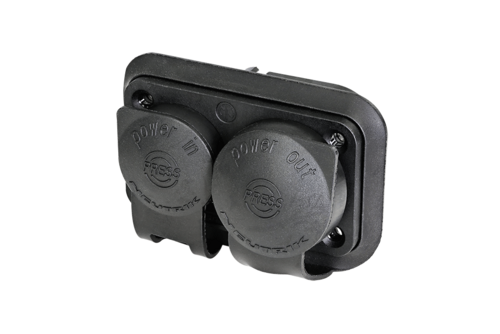

The rubber sealing cover protects the powerCON TRUE1 duplex chassis connector NAC3PX-TOP from dust and water according to protection class IP65.
Downloads
Neutrik Product Guide - 06 powerCON and Circular Connectors PG EN 202210-V25
pdf - 7 MB
BDA 380 - powerCON TRUE 1 - NAC3MX-W
pdf - 4.87 MB
SCNAC-PX
pdf - 207.81 KB
SCNAC-PX
dxf - 878.84 KB
30008965_-_SCNAC-PX
stp - 171.48 KB
SCNAC-PX-GEBOGEN
stp - 4.32 MB
30008965_-_SCNAC-PX
stp - 171.48 KB
Assembly Instruction Sealing Cover
pdf - 1.43 MB
Technical Information
| Product | |
|---|---|
| Title | SCNAC-PX |
| Material | |
|---|---|
| Material | EPDM |
| Environmental | |
|---|---|
| Flammability | UL94 HB |
| Protection class | IP65, UL50E enclosure type 4 |
