SCNAC-04

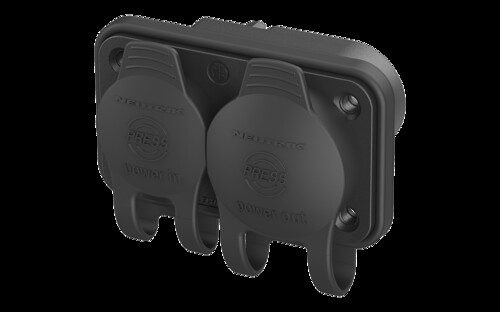

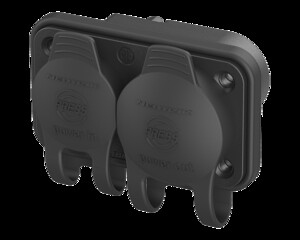

SCNAC-04 assembled
SCNAC-04
SCNAC-04 assembled

SCNAC-04

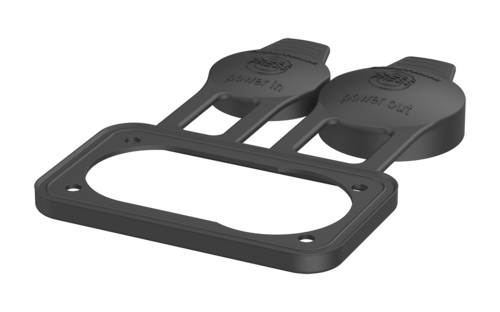

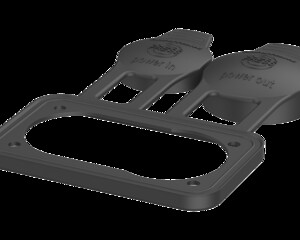

NEW: The rubber sealing cover SCNAC-04 with double caps (power-in / power-out) protects the powerCON TRUE1 TOP chassis connectors NAC3PX-TOP from dust and water according to protection class IP 65. User friendly and easy to assemble, its compact frame allows for high packing density.

Download Data Sheet

Features & Benefits

  • IP 65 water and dust proof test passed for 15 mins with vacuum (-0.2bar) in closed condition, suitable for lighting industry
  • UV-resistant material for use in harsh outdoor environment
  • Allows high packaging density on the chassis
  • User friendly, easier to assemble

Downloads

Technical Information

Product
Title SCNAC-04
Material
Material EPDM
Color Black
Marking Power in / Power out
Environmental
Flammability acc. to UL 94 HB
Protection class acc. to IEC 60529 IP 65
