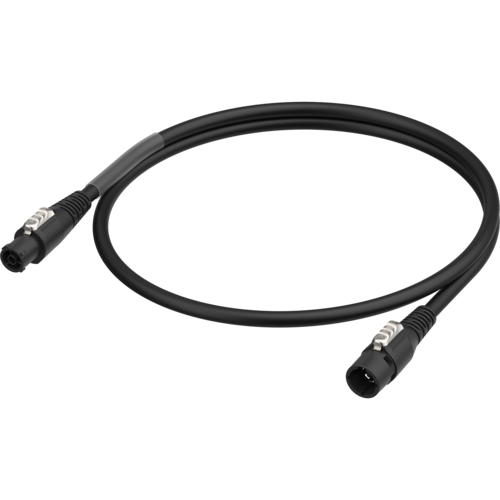

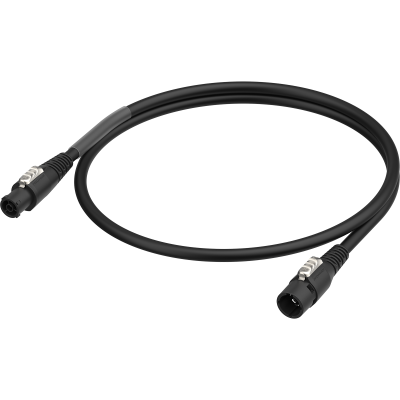

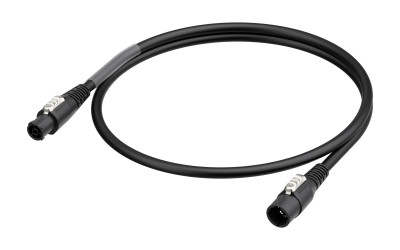

powerCON TRUE1 - Interconnection cordset (NKPF-M*)

Download Data Sheet

Ready-made overmolded power cord in protection class IP65. The cable utilizes standard duty cord with 3 conductors with cross section 1.5 mm2 or AWG 12.

The cables are equipped with Neutrik powerCON TRUE1 NAC3FX-W and NAC3MX-W. Cables are available in different lengths.

Downloads
NKPF-M
pdf - 872.37 KB
Drawing NKPF-M
vnd.dwg - 1.08 MB
Neutrik Product Guide - 06 powerCON and Circular Connectors PG EN 202210-V25
pdf - 7 MB
Links
UL Certificate (ELBZ2.E343814) cUL Certificate (ELBZ8.E343814)

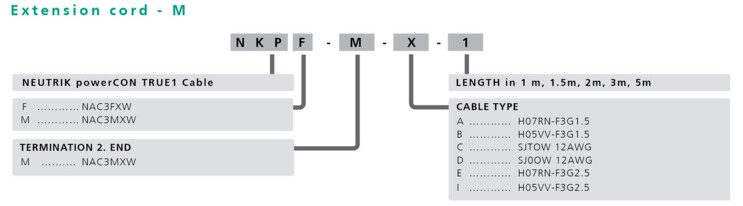

Partnumber Breakdown

powerCON TRUE1 Part Number Breakdown Extension Cord
powerCON TRUE1

The powerCON TRUE1 is a locking waterproof 16 A (USA: 20 A) true mains connector. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection.

The powerCON TRUE1 is a connector with breaking capacity (CBC), i.e. it can be connected or disconnected under load or live.

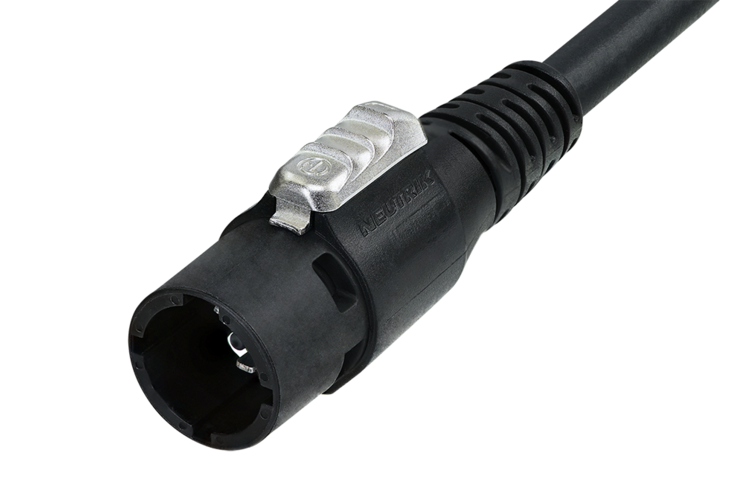

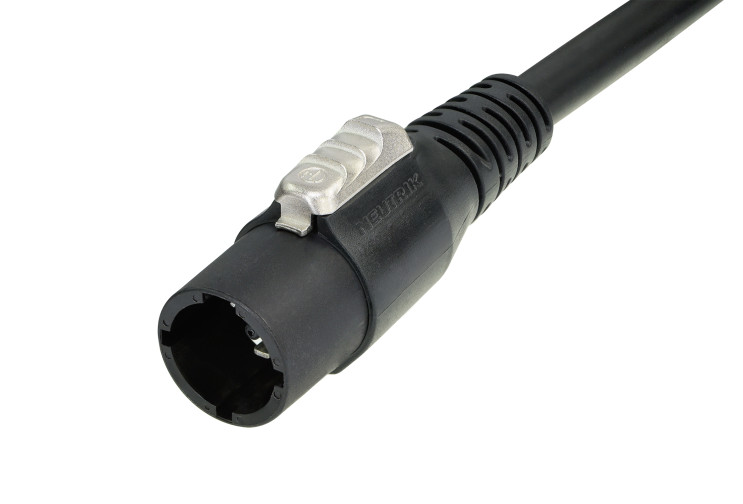

powerCON TRUE1 Power Cable male

powerCON TRUE1 Power Cable male

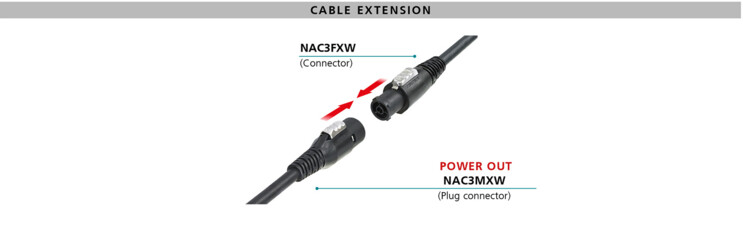

Mating scenario powerCON TRUE 1 cable extension

Mating scenario powerCON TRUE 1 cable extension

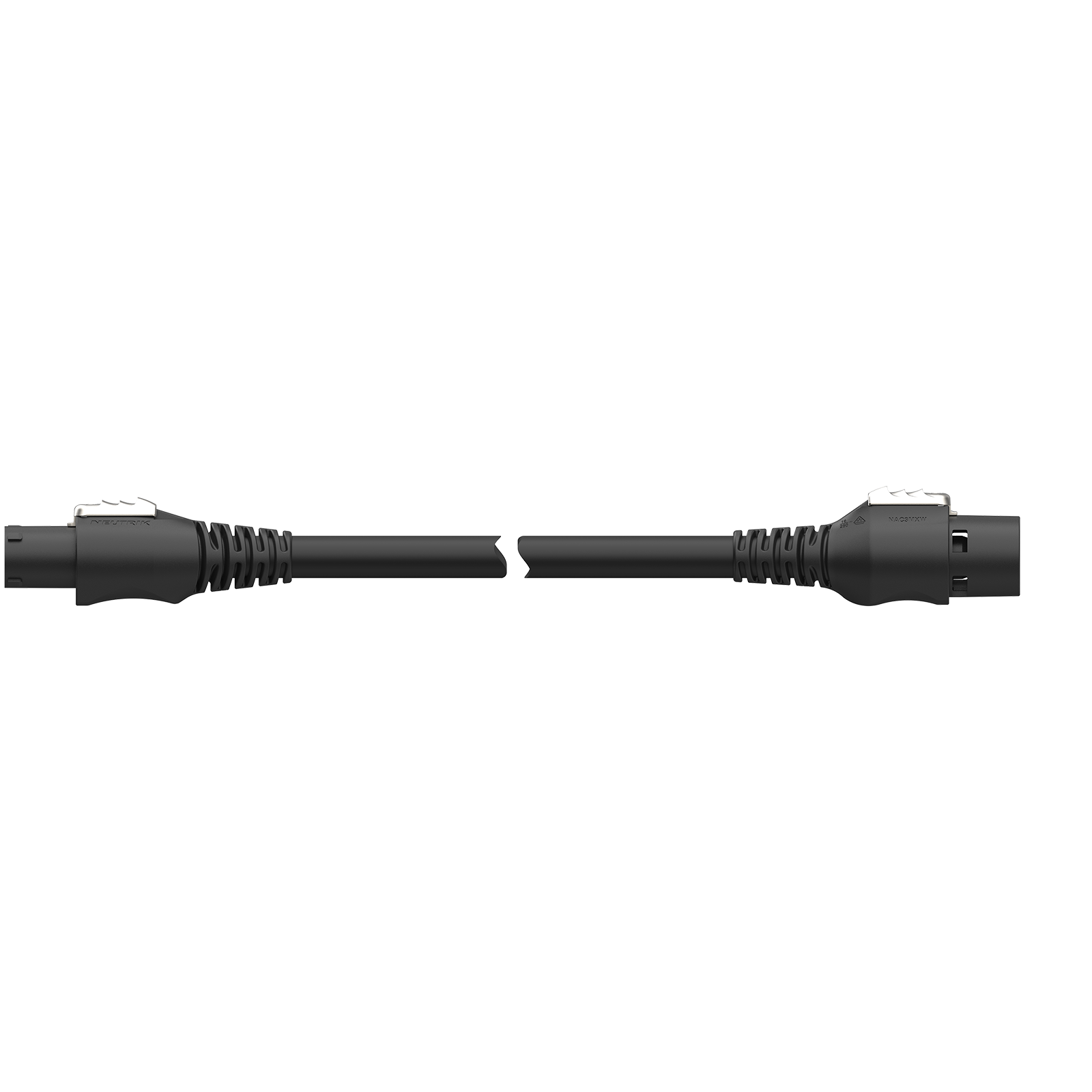

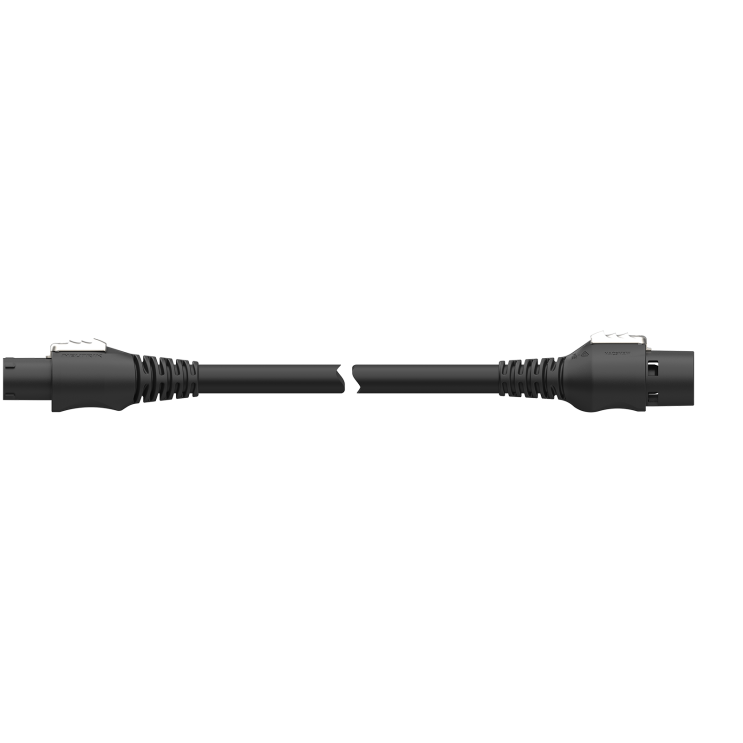

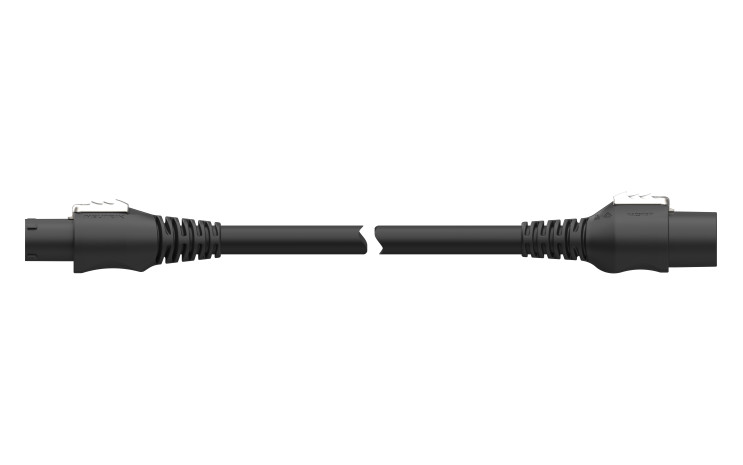

powerCON TRUE1 Extension Cord
