neutrik > Products > medical > opticalCON Fiber Optic Connection System > opticalCON HYBRID MED > opticalCON HYBRID MED Breakout Cable
hybrid_med_breakoutcable

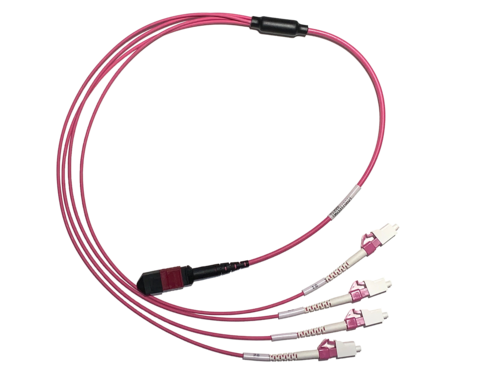

opticalCON HYBRID MED Breakout Cable

High performance lensed MTP® breakout cable for permanent and temporary installations. Standard premium grade A LC's (multimode OM4) guarantee low insertion loss values and high performance.

Download Data Sheet
Selection of topics
Features & Benefits Downloads Technical Information Accessories
Download Data Sheet

Features & Benefits

  • Lensed High performance MTP® ferrule
  • Standard split length: 30 cm
  • LC breakout connectors available with 4x, 6x, 8x and 16x
  • Corning ClearCurve® OM4 performance cable

Downloads

  • Cleaning Instruction - opticalCON HYBRID MED
  • opticalCON HYBRID MED Application
  • Product Folder opticalCON HYBRID MED

Technical Information

Product
Title (4xLC) NKOB16M4-XP-0-*
Title (6xLC) NKOB16M6-XP-0-*
Title (8xLC) NKOB16M8-XP-0-*
Title (16xLC) NKOB16M-XP-0-*
Gender Monolithic
Mechanical
Lifetime 10'000 mating cycles
Locking device Push/Pull
Mounting direction Front mounting
Environmental
Temperature range -10°C to +70°C
Optical
Insertion loss Typ. 0.65 dB per connection / Max. 0.9 dB per connection
Return loss Typ. 28 dB per connection / Min. 25 dB per connection
Cable
Jacket Material FRNC
Weight 8 kg/km
Fire Load 0.14 MJ/m
Flammability:
Cable is flame retardant acc. to IEC 60332-1-2
Smoke Density acc. to IEC 60332-3-22 Cat.A
Halogen-Free acc. to IEC 60754-1
Acidity of the combustion gases acc. to IEC 60754-2
