neutrik / Products / opticalCON® Fiber Optic Connection System / opticalCON® HYBRID MED / opticalCON HYBRID MED Connector

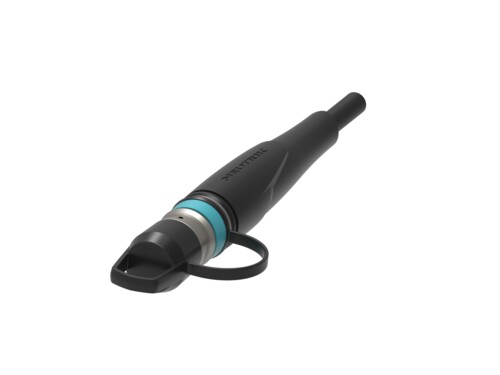

opticalCON HYBRID MED Connector

Download Data Sheet

Pre-assembled male to male cable with 16 multimode fiber channels and 2 power pins. opticalCON HYBRID MED is more robust, reliable and easier to maintain than any other common hybrid systems. With new technology based on fiber lenses, Neutrik's opticalCON HYBRID MED achieves an extremely robust signal with minimal loss. The optical connection is exceptional well protected against dirt and dust by its lenses and an additional sealing cover.

Features & Benefits
  • Ruggedized and dirt protected hybrid connection system

    - 1 lensed MPO connector with 16 fiber channels
    - 2 power contacts
    - 1 ground contact
  • Available in standardized length (3m, 5m, 8m and 10m) and packaging versions
  • Accommodates a unique lensed optical MPO connector
  • Excellent dust and dirt protection
  • Easy to maintain and nurse-proof design with glove protection
  • Shielded system with EMI protection design
  • Suitable for indoor healthcare applications
Downloads
st-no16m-xp
pdf - 125.13 KB
st-no16m-xp
dxf - 368.99 KB
no16m-xp
stp - 4.42 MB
BDA 598 V2 - opticalCON HYBRID MED Cleaning Instruction
pdf - 832.63 KB
opticalCON HYBRID MED Application
pdf - 981.48 KB
NEUTRIK opticalCON HYBRID MED NF27 V4 202010
pdf - 6.38 MB
cable datasheet opticalCON HYBRID MED
pdf - 323.96 KB
NTP14 - opticalCON HybridMED
pdf - 5.1 MB

Technical Information

Product
Title NKO16M-XP-0-*
Gender Male
Electrical
Contact resistance < 7 mΩ
Insulation resistance > 10 GΩ (initial)
Mains 12V AC / 10A / @50 Hz
Mechanical
Cable retention 500 N
Insertion force < 45N
Withdrawal force < 45N
Lifetime (typ.) 10'000 mating cycles
Wiresize (power) 4x 20 AWG
Locking device Push/Pull
Material
Boot TPU
Bushing Zinc diecast (ZnAl4Cu1)
Contacts Brass
Insert Polyetherimide and Polycarbonate (PEI+PC)
Shell Zinc diecast and Polyoxmethylen
Shell plating Nickel
Strain relief Brass
Environmental
Flammability UL94 V-0
Temperature range -40°C to +75°C
Optical
Insertion loss Typ. 0.65 dB per connection / Max. 0.9 dB per connection
Return loss Typ. 28 dB per connection / Min. 25 dB per connection
Channels 16
