neutrik > Products > DANTE Interface > NPS-30W

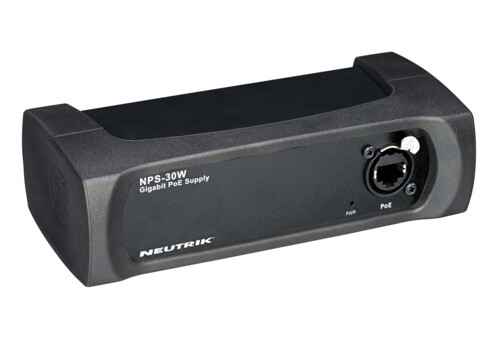

PoE-30W-Supply-Front-view

NPS-30W

*discontinued*
sale through Neutrik Group subsidiaries and distributors while supplies last


NPS-30W is Neutrik's answer to increasing demand for PoE injectors. It is the world's first PoE injector made for harsh stage conditions, with lockable power and network connectors. NPS-30W is a convenient companion for any PoE application, not just Neutrik's network products.



Download Data Sheet
Selection of topics
Features & Benefits Downloads Accessories
Download Data Sheet

Features & Benefits

  • Perfect use with Neutrik network devices, such as the NA2-IO-DPRO, etc.
  • For use with any other network device, that requires PoE supply
  • Lockable power and network connectors
  • Heavy duty PoE supply for rugged stage conditions
  • 30 W PoE budget
  • 1 Gbps speed
  • 48 V DC power output
  • Different mounting options (rack, truss, floorbox, table mounting)

Downloads

  • Drawing NPS-30W
  • Product Folder Audio Network Solutions
  • User Manual PoE Supply NPS-30W
  • Dante Update Instructions
  • EU Declaration of Conformity CE NPS-30W
  • CB Certificate EMC NPS-30W
  • CB Certificate Safety NPS-30W

As a passive Power Sourcing Equipment device, NPS-30W acts like a classic power supply, requiring no power negotiation with attached powered devices. NPS-30W's total power budget of 30W allows it to simultaneously power, for example, up to 4 NA2-IO-DPROs in daisy-chain mode, making NPS-30W ideal for various scenarios such as ambient miking.

All available mounting accessories for Neutrik's network devices - for rack, truss, floorbox, and table mounting - are compatible with NPS-30W.

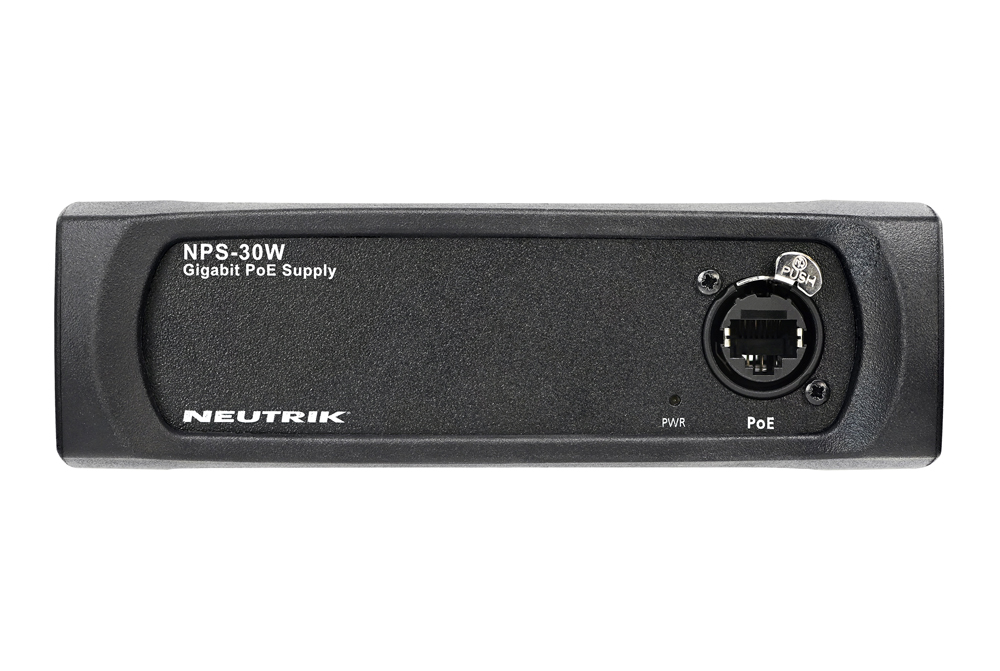

NPS-30W Front View

NPS-30W-frontview

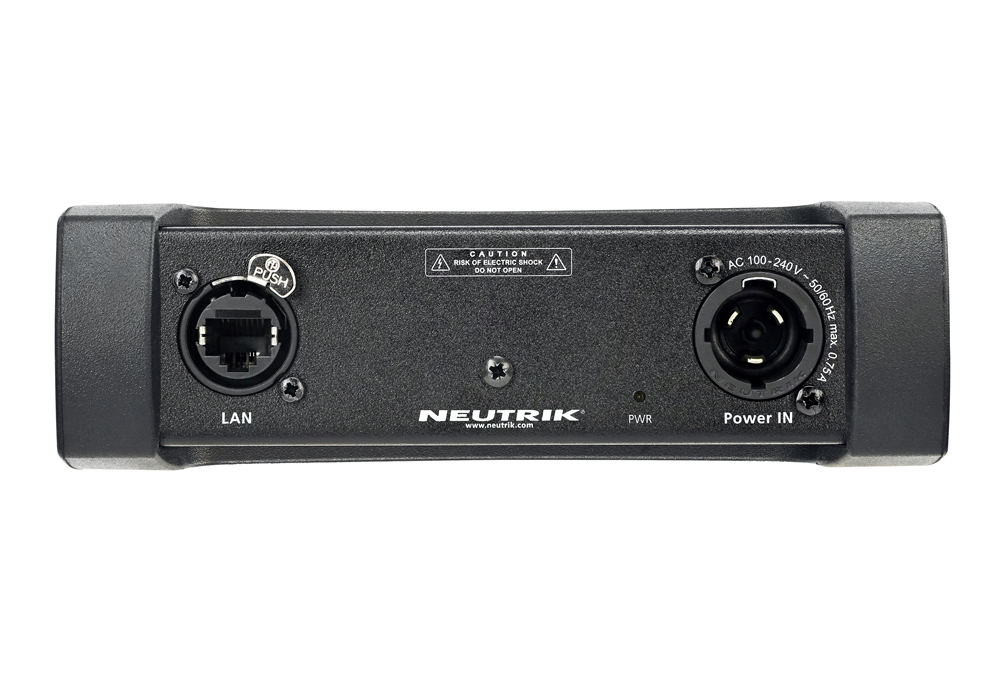

NPS-30W Rear View

NPS-30W-rearview

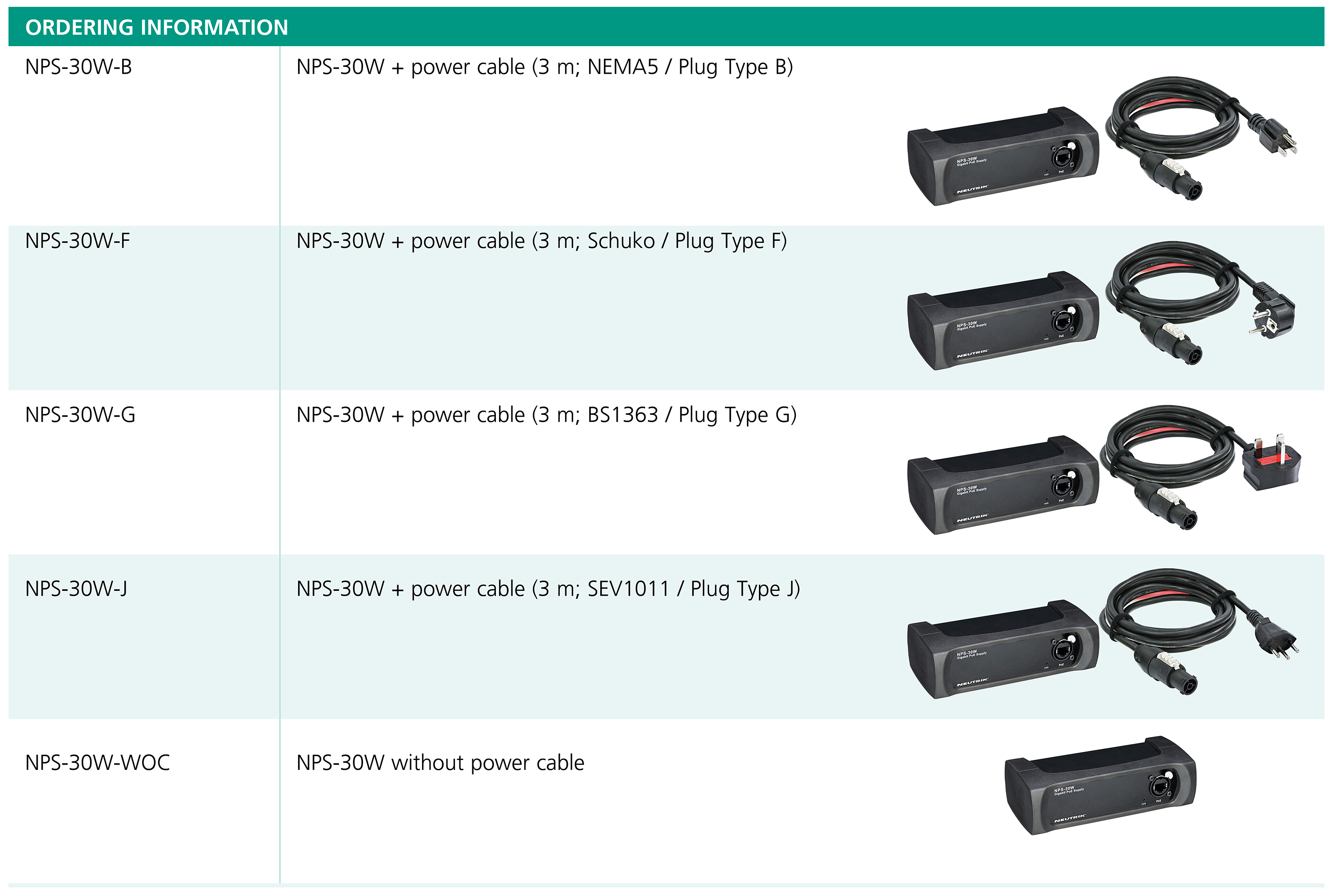

Ordering Information

NPS-30W Ordering Information

Accessories

NA2-IO-DPRO-Front-view-00
NA2-IO-DPRO
NA-RC
NA-RC
NRP1RU-2A
NRP1RU-2A
NA-MB-KIT
NA-MB-KIT
NA-TM-KIT
NA-TM-KIT
