NO4*BB2D-A
opticalCON QUAD breakout box: 1 x NO4FDW-A to 2 x NO2-4FDW-A

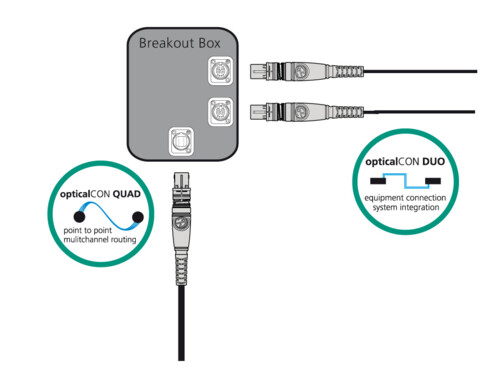

The breakout boxes are used to split a 4-channel point-to-point opticalCON QUAD connection. In mated condition the boxes are dust and water resistant according protection class IP 65. The closed boxes are protected according to IP67.
| Product | NO4MBB2D-A | NO4SBB2D-A | NO4SABB2D-A |
| Fiber Mode | multi mode PC | single mode PC | single mode APC |

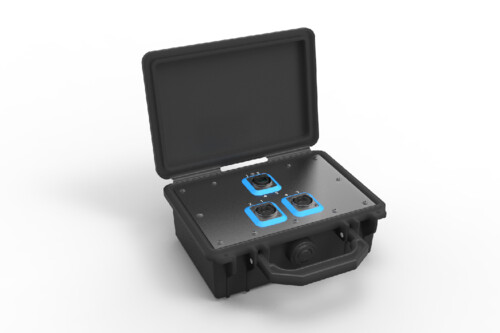

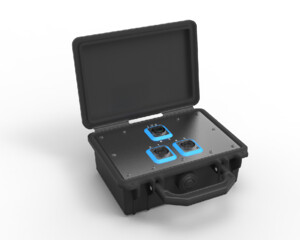

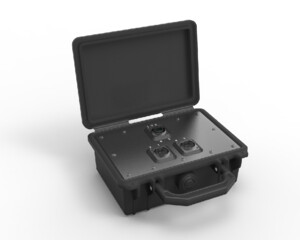

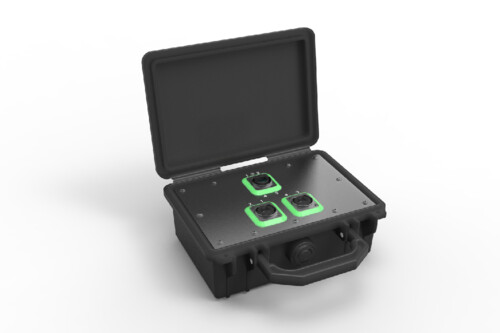

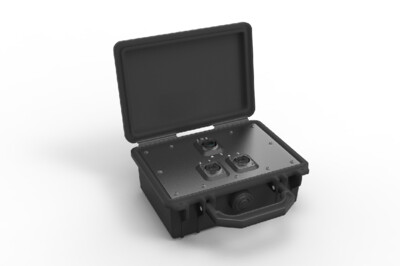

| Color Coding | Black | Blue | Green |
Equipment, e.g.
- Camera connections
- Ethernet
- DVI/HDMI/KVM
- Audio Network
- DMX Network
- InterCom
- Data (RS232, 424)
