neutrik > Products > NLT8FX-BAG

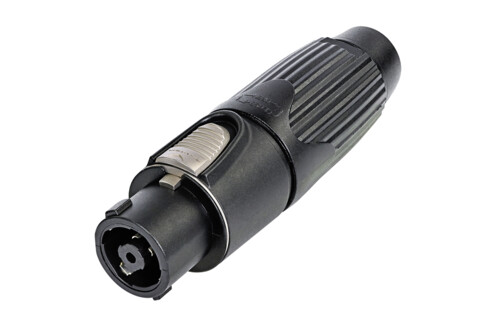

NLT8FX-BAG

NLT8FX-BAG

* DISCONTINUED *

Replaced by: NLT8FXX-BAG

8-pole female cable connector, black-chrome metal housing, solder

The speakON STX Series was especially designed for heavy duty amplifier-loudspeaker applications like professional touring. The extremely rugged and durable STX Series features an all metal housing.

Download Data Sheet
Selection of topics
Features & Benefits Downloads Technical Information
Download Data Sheet

Features & Benefits

  • Extremely robust metal housing designed for harsh and demanding environment
  • Ideal product for touring applications and harsh environments
  • Current rating 40 Amp continuous, 50 Amp audio signal with 50% duty cycle
  • Uses precise “Quick Lock” system
  • Mates with all currently available speakON products

Downloads

  • Drawing NLT8FX
  • Assembly Instruction - NLT8FX
  • Product Guide - Section Loudspeaker Connectors
  • Overview speakON Connectors

Technical Information

Product
Title NLT8FX-BAG
Connection Type speakON
Gender female
Electrical
Contact resistance < 2 mΩ (after lifetime)
Dielectric strength 4 kVdc (peak)
Insulation resistance > 10 GΩ
Rated current per contact 40 A rms continuous
Rated current per contact 50 A audiosignal, duty cycle 50 %
Rated voltage 250 V ac
Attention speakON is NOT to be used as an AC mains or power supply connector!
Mechanical
Cable O.D. 8 - 20 mm
Cable retention ≥ 220 N (subject to cable O.D. and material)
Lifetime > 5000 mating cycles
Wiresize 6 mm²
Wiresize 10 AWG
Wiring Solder contacts
Locking device Quick Lock (latch)
Material
Contact plating 4 µm Ag
Contacts Spring copper
Insert Polyamide (PA 6 30 % GR)
Locking element Zinc diecast (ZnAl4Cu1)
Shell Zinc diecast (ZnAl4Cu1)
Strain relief Polyacetal (POM)
Environmental
Flammability UL 94 HB
Protection class IP 50 (mated condition)
Solderability Complies with IEC 68-2-20
Temperature range -30 °C to +80 °C
