NLT8FP-BAG
*** DISCONTINUED ***
Direct replacement / successor: NLT8FPXX-BAG

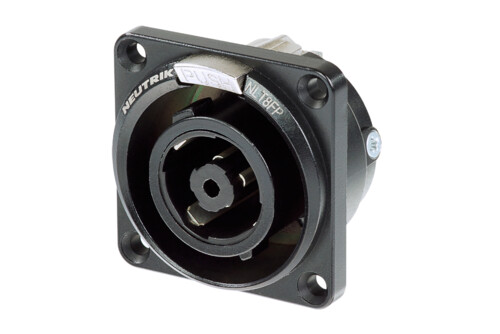

8-pole female chassis, black-chrome metal housing, solder contacts
The speakON STX Series was especially designed for heavy duty amplifier-loudspeaker applications like professional touring. The extremely rugged and durable STX Series features an all metal housing.
Features & Benefits
- Extremely robust metal housing designed for harsh and demanding environment
- Ideal product for touring applications and harsh environments
- Current rating 40 Amp continuous, 50 Amp audio signal with 50% duty cycle
- Uses precise “Quick Lock” system
- Mates with all currently available speakON products
Downloads
Technical Information
| Product | |
|---|---|
| Title | NLT8FP-BAG |
| Connection Type | speakON |
| Gender | female |
| Electrical | |
|---|---|
| Contact resistance | < 2 mΩ (after lifetime) |
| Dielectric strength | 3 kVdc (peak) |
| Insulation resistance | > 10 GΩ |
| Rated current per contact | 40 A rms continuous |
| Rated current per contact | 50 A audiosignal, duty cycle 50 % |
| Rated voltage | 250 V ac |
| Attention | speakON is NOT to be used as an AC mains or power supply connector! |
| Mechanical | |
|---|---|
| Lifetime | > 5000 mating cycles |
| Wiresize | 6 mm² |
| Wiresize | 10 AWG |
| Locking device | Quick Lock |
| Chassis shape | square G-size flange |
| Layout | four thru holes |
| Material | |
|---|---|
| Contact plating | 4 µm Ag |
| Insert | Polyamide (PA 6 30 % GR) |
| Shell | Zinc diecast (ZnAl4Cu1) black chrome |
| Contacts | Spring Copper (CuSn0.2) |
| Environmental | |
|---|---|
| Flammability | UL 94 HB |
| Protection class | IP 50 (mated condition) |
| Solderability | Complies with IEC 68-2-20 |
| Temperature range | -30 °C to +80 °C |
