NLT8FPXX-BAG

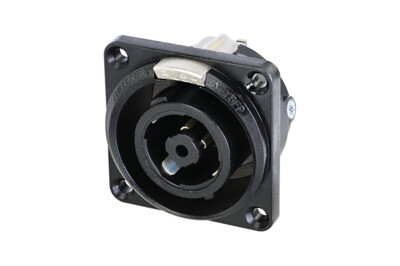

8 pole female chassis connector, metal square black G-size housing, countersunk thru holes, solder contacts.
This connector is accepted within audio equipment designed according to IEC 62368-1 due to its component certification according to IEC 61984.
The speakON STXX Series was especially designed for heavy duty amplifier-loudspeaker applications like professional touring. The extremely rugged and durable STXX Series features an all metal housing.
Features & Benefits
- IEC 61984 certified, thus accepted as a component of equipment acc. to IEC 62368-1
- Current rating 30 A rms
- Extremely robust metal housing and glass reinforced V-0 material insert designed for harsh and demanding environment
- Uses precise “Quick Lock” system
- Compatible with complete speakON 8 pole product series
Downloads
Technical Information
| Product | |
|---|---|
| Title | NLT8FPXX-BAG |
| Gender | female |
| Electrical | |
|---|---|
| Contact resistance | < 2 mΩ |
| Dielectric strength | 1.5 kVac |
| Insulation resistance | > 0.1 GΩ (after dampheat) |
| Rated current per contact | 30 A rms continuous (acc. to IEC 61984) |
| Rated voltage | 250 V ac |
| Attention | speakON is NOT to be used as an mains or power supply connector (AC / DC)! |
| Mechanical | |
|---|---|
| Lifetime | > 5000 mating cycles |
| Wiresize | 1.5 mm² - 6 mm² |
| Wiresize | 10 AWG |
| Termination | solder contacts |
| Locking device | Quick Lock |
| Mounting direction | Front mounting |
| Chassis shape | square G-size flange |
| Layout | four thru holes |
| Material | |
|---|---|
| Contact plating | Ag |
| Contacts | Copper Alloy |
| Shell | Zinc diecast, black chrome plated |
| Insert | Polyamide (PA 6.6) |
| Environmental | |
|---|---|
| Temperature range | -30 °C to +80 °C |
| Flammability | UL 94 V-0 |
| Protection class | IP 50 (mated condition) |
| Solderability | Complies with IEC 68-2-20 |
