neutrik > Products > powerCON > powerCON TRUE1 Cables > NKPHxx-MFA1
NKPHx-AxAx

NKPHxx-MFA1

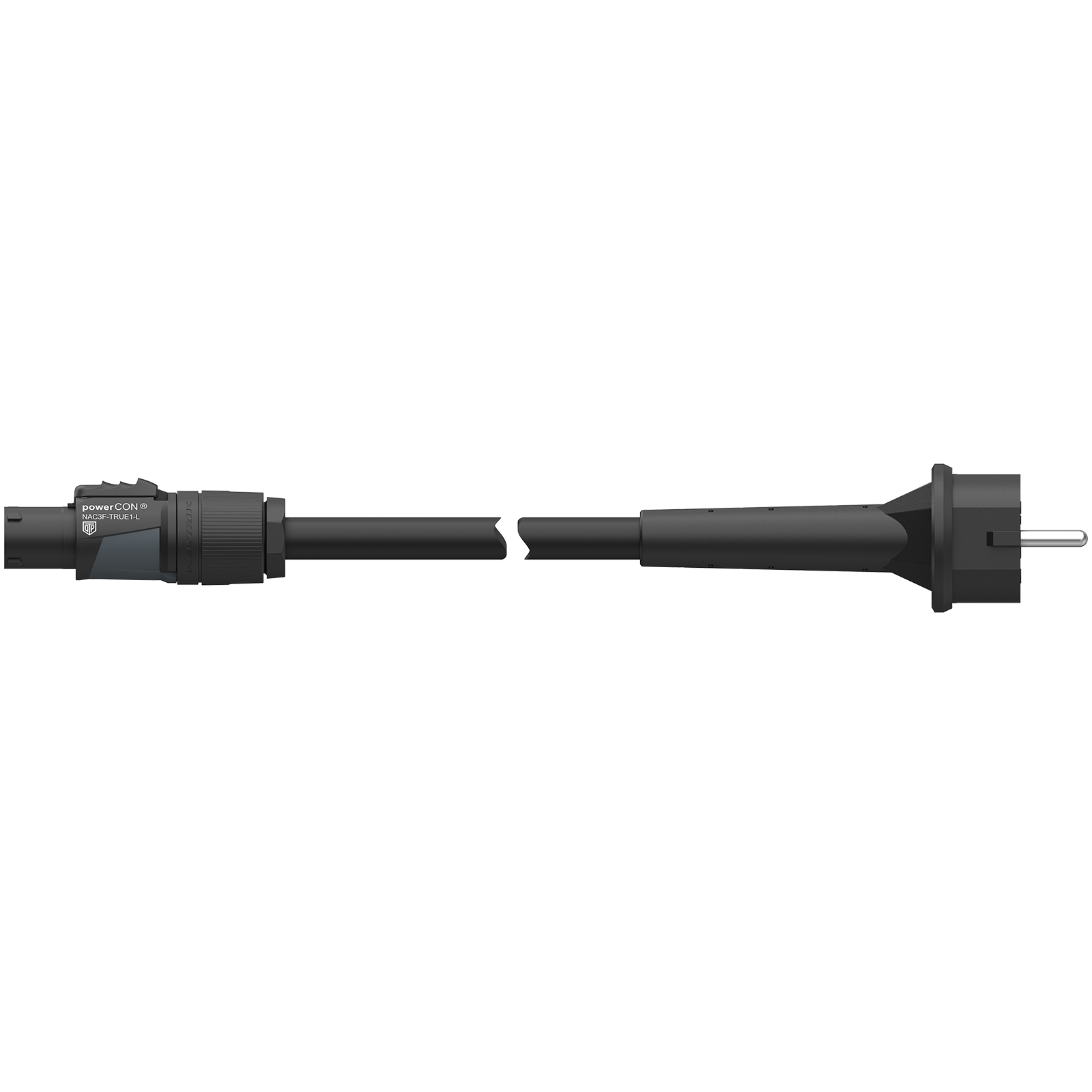

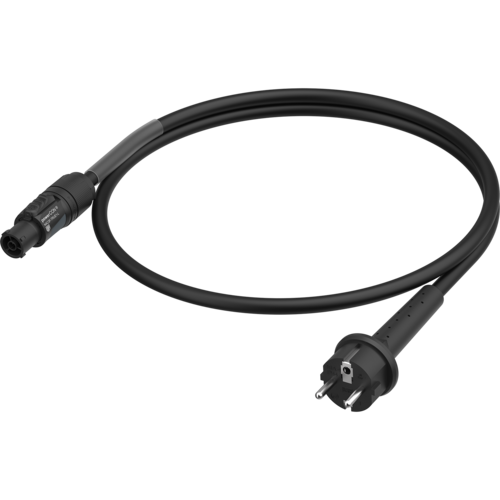

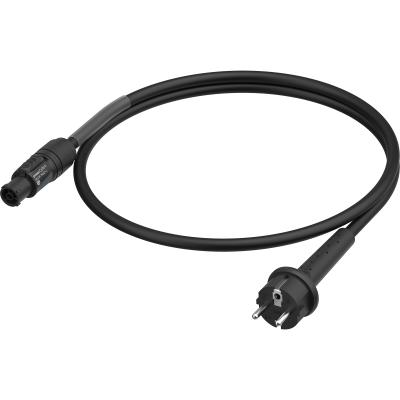

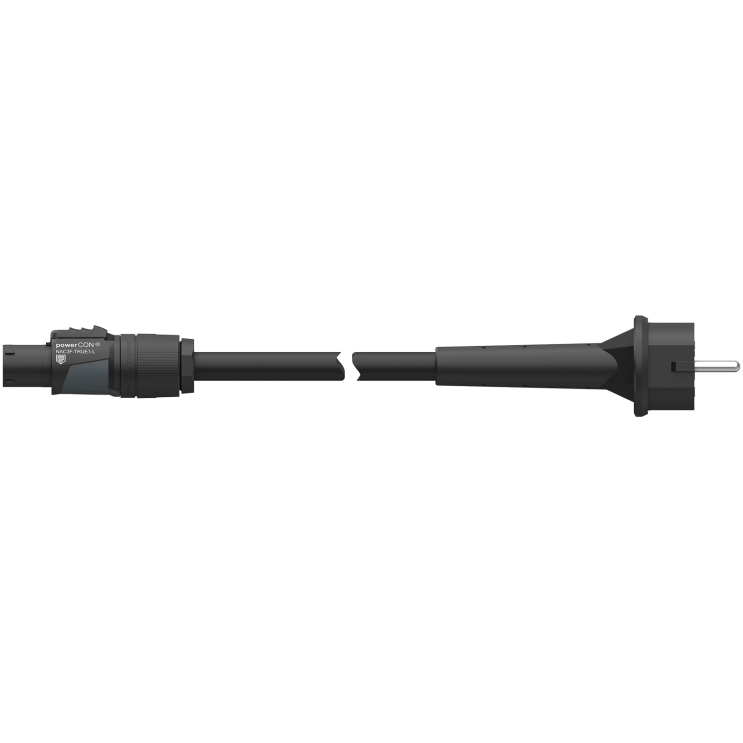

NEUTRIK® cables with molded Schuko main plug to powerCON® TRUE1® TOP and high-quality H07RN cable. Ideally suited for stages and events.

Compliant with all relevant versions of IEC 60799.

Download Data Sheet
Selection of topics
Features & Benefits Downloads Article Variations
Download Data Sheet

Features & Benefits

  • NKPH power cables assemblies are compliant with all relevant versions of IEC 60799
  • powerCON® TRUE1® TOP power connectors are certified according to  IEC 60320-1
  • Connectors with breaking capacity (CBC)
  • IP65 rated when intermated with NEUTRIK® powerCON® TRUE1® TOP
  • High-quality rubber cables from European manufacturers

Downloads

  • CE declaration NKPH - CEU-PGD-0006-01
  • Drawing NKPH2-MFA1
  • Drawing NKPH2-MFA1
  • Drawing NKPH1-MFA1
  • Drawing NKPH1-MFA1
  • BDA 676 - Manual - CONTRIK powerCON cables - NKPH - DE
  • BDA 686 - Manual - CONTRIK powerCON cables - NKPH - EN

Article Variations

Article nameDetailsOrder code
NKPH01-MFA1-M01501.5 m 3x1.5 mm² H07RN Schuko "E+F" (m) powerCON® TRUE1® TOP (f)1027576
NKPH02-MFA1-M01501.5 m 3x2.5 mm² H07RN Schuko "E+F" (m) powerCON® TRUE1® TOP (f)1027577
NKPH02-A2MF-M01501.5 m 3x2.5 mm² H07RN powerCON® TRUE1® TOP (m) Schuko (f)1027578

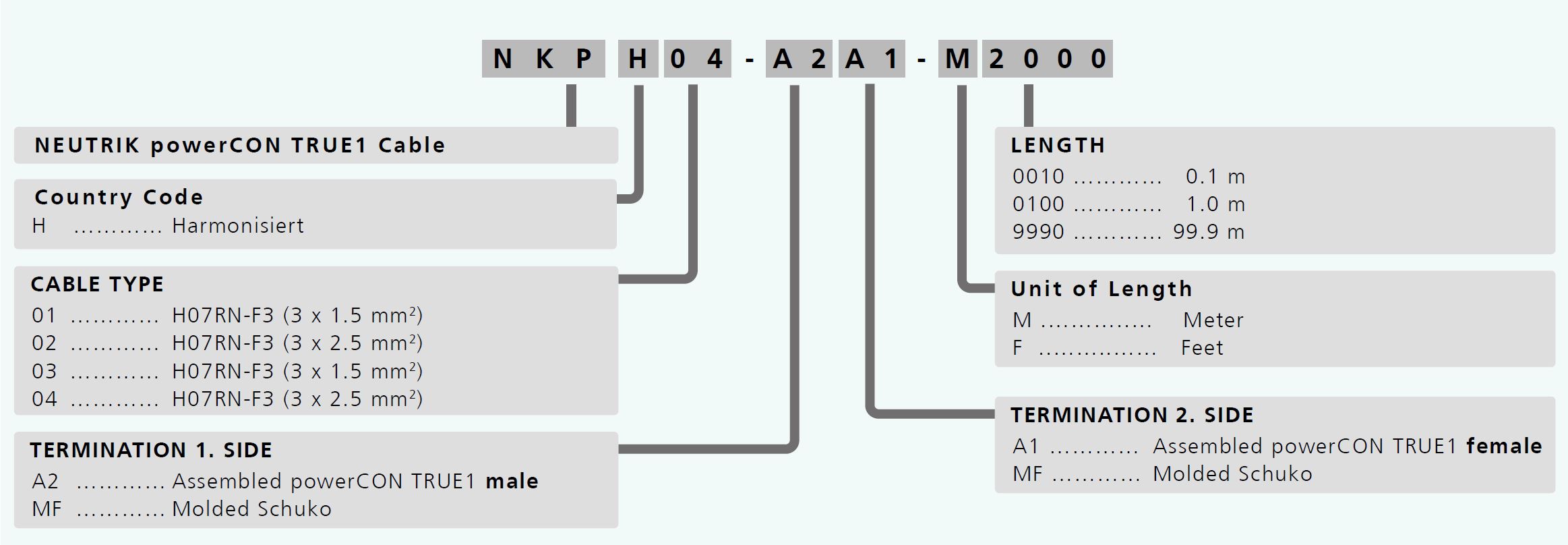

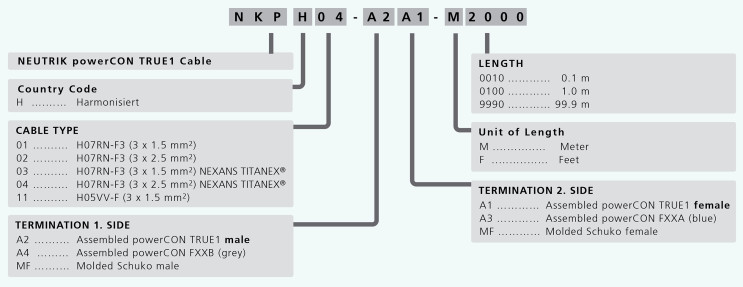

Type Descriptions

Typenschlüssel powerCON True1 Cables

CABLE TYPE 01 / 02 - OZOFLEX PRYSMIAN; CABLE TYPE 03 / 04 - TITANEX NEXANS
