NE8MX-B-TOP&-14 front view NE8MX-B-TOP&-14 rear view

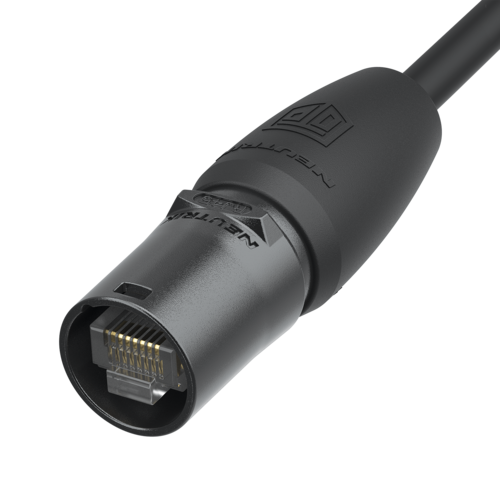

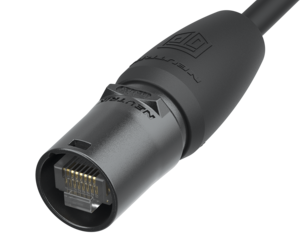

NE8MX-B-TOP&-14 front view

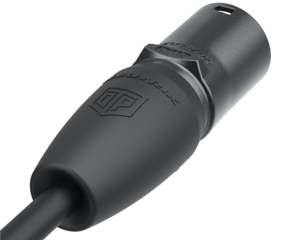

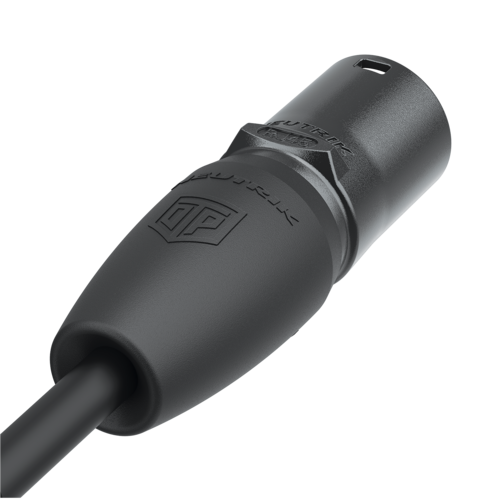

NE8MX-B-TOP&-14 rear view
1/2
neutrik / Products / etherCON® RJ45 Connectors / etherCON® Cable Connectors / etherCON® TOP Series / NE8MX-B-TOP

NE8MX-B-TOP

Download Data Sheet

Cable connector carrier consists of a shell, chuck and boot. The boot is suitable for cable diameters from 5 - 8 mm. For non pre-assembled cables only. Cable connector carrier does not include a RJ45 plug.

IP65 rated and TOP approved in consideration to UL50E by mating with related cable or chassis connector of the XLR TOP range.

ATTENTION: Does not intermate with the CAT6 chassis connectors NE8FDY-C6 and NE8FDY-C6-B.

Features & Benefits
  • The RJ45 system for harsh and demanding environment
  • Cable connector carrier accepts the most common RJ45 plugs (see list at downloads)
  • IP65 rated and TOP approved in consideration to UL50E by mating with related cable or chassis connector of the XLR TOP range
  • Rugged diecast shell and unique chuck type strain relief
  • Protects Ethernet connections in a variety of commercial type applications and is designed to prevent breakage of the fragile components of standard RJ45 connectors
  • Allows assembly of non pre-assembled conventional RJ45 cables
Downloads
20001847_-_NE8MX-B-TOP
pdf - 200.45 KB
20001847_-_NE8MX-B-TOP
dxf - 4.61 MB
3D_Drawing_NE8MX-B-TOP
stp - 2.77 MB
BDA 662 V1 - etherCON NE8MX-B-TOP
pdf - 1.1 MB
etherCON Compatible RJ45 Connectors
pdf - 252.03 KB

Technical Information

Product
Title  NE8MX-B-TOP 
Connection type  etherCON
Gender  Male
IMPORTANT Cable connectors do not include RJ45 plug. RJ45 cable assembly must be provided by end user!
Mechanical
Cable O.D.  5.0 – 8.0 mm 
Insertion force  ≤ 20 N 
Withdrawal force  ≤ 20 N 
Lifetime  > 1000 mating cycles 
Material
Boot Thermoplastic elastomer (TPE)
Shell  Zinc diecast (ZnAl4Cu1)
Insert Polyamide (PA66)
Strain relief  Polyacetal (POM)
Shell coating Black KTL
Environmental
Protection class IP65 (mated) 
Temperature range  -30 °C to +80 °C 
Accessories
audio
NE8FFX6-W

etherCON CAT6A feedthrough coupler for cable extensions

Dichtkappe_SCMX-TOP_persp front liegend_RGB_WEB.png
SCMX-TOP

The rubber sealing cover protects the XLR male TOP connectors NC*MX-TOP & etherCON TOP cable connector NE8MX-TOP from dust and water according to protection class IP65.
