neutrik > Products > NE8MC-B-1
ne8mc-b-1

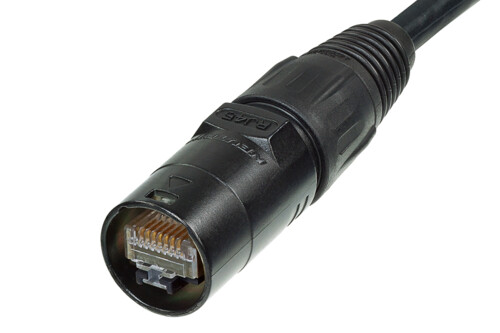

NE8MC-B-1

Cable connector carrier consists of a black chromium shell, fixing disk, chuck and boot. The boot (same as X-Series) is suitable for cable diameters from 3.5 - 8 mm. For non pre-assembled cables only. Cable connector carrier does not include a RJ45 plug.

The etherCON cable connector carrier upgrades a conventional RJ45 connector to an extremely robust lockable solution.

Attention! Does not intermate with the CAT6 chassis connectors NE8FDY-C6 and NE8FDY-C6-B.

Download Data Sheet
Selection of topics
Features & Benefits Downloads Technical Information Accessories
Download Data Sheet

Features & Benefits

  • The RJ45 system for harsh and demanding environment
  • Cable connector carrier accepts the most common RJ45 plugs (see list at downloads)
  • Rugged diecast shell and unique chuck type strain relief
  • Protects Ethernet connections in a variety of commercial type applications and is designed to prevent breakage of the fragile components of standard RJ 45 connectors
  • O-ring gasket to achieve IP54 water protection in combination with SE8FD sealing kit
  • Accessories include color coded boots in 9 standard colors

Downloads

  • Drawing NE8MC-1
  • Drawing NE8MC-1
  • Assembly Instruction - etherCON Cable Connector NE8MC-1
  • etherCON compatible RJ45 connectors

Technical Information

Product
Title NE8MC-B-1
Gender male
Mechanical
Cable O.D. max. 8 mm 0.315'
Insertion force ≤ 20 N
Withdrawal force ≤ 20 N
Lifetime > 1000 mating cycles
Wiresize
Material
Boot Polyamide (PA 6)
Shell Zinc diecast (ZnAl4Cu1)
Shell plating Black chromium
Strain relief Polyacetal (POM)
Environmental
Temperature range -30 °C to +80 °C

Accessories

BSX
BSX-*
Add a description ...
NE8FFX6-W
