NC5FX-TOP

NC5FX-TOP

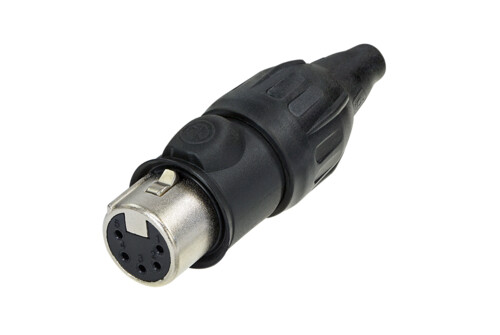

5 pole female cable connector, TRUE OUTDOOR PROTECTION (TOP), gold contacts

The X-TOP series is a "heavy-duty" XLR cable connector for outdoor use. IP65 rating and certified outdoor protection to UL 50E by mating with related cable or chassis connector of the XLR TOP range.

Download Data Sheet
Selection of topics
Features & Benefits Downloads Distributor Stock Search Technical Information Accessories
Download Data Sheet

Features & Benefits

  • Heavy-duty sealed XLR connector range for harsh and demanding environment
  • IP65 rating and certified outdoor protection to UL 50E (in combination with a TOP range counterpart)
  • Uses high impact UV-resistant materials

Downloads

  • Product Guide TOP
  • Drawing NC5FX-TOP
  • Drawing NC5FX-TOP
  • Assembly Instruction - NC3FX-TOP + NC5FX-TOP
  • UL Certificate of Compliance XLR TOP

Links

  • UL_Certificate (ECBT2.E135070)

Distributor stock search

Enter part number and search Neutrik USA distributor's stock.

Technical Information

Product
Title NC5FX-TOP
Connection Type XLR
Gender female
Electrical
Capacitance between contacts ≤ 4 pF
Contact resistance ≤ 3 mΩ
Dielectric strength 1,5 kVdc
Insulation resistance > 10 GΩ (initial)
Rated current per contact 16 A
Rated voltage < 50 V
Mechanical
Cable O.D. 5.0 - 8.0 mm
Insertion force ≤ 20 N
Withdrawal force ≤ 20 N
Lifetime > 1000 mating cycles
Wiresize max. 1.0 mm²
Wiresize max. 18 AWG
Wiring Solder contacts
Locking device Latch lock
Material
Bushing UV-resistant rubber
Contact plating 0.2 µm Au hard alloy over 2 µm Ni
Contacts Brass (CuZn39Pb3)
Insert Polyamide (PA 6.6 30 % GR)
Locking element St3K32 (latch) / Ck 67 (spring)
Shell Zinc diecast (ZnAI4Cu1)
Shell plating Nickel
Strain relief Polyacetal (POM)
Sealing jacket UV-resistant rubber
Environmental
Approvals UL
Flammability UL 94 HB
Standard compliance IEC 61076-2-103
Protection class IP65, UL50E enclosure type 4 (mated)
Solderability Complies with IEC 68-2-20
Temperature range -30 °C to +80 °C
