NC3MXX-HA

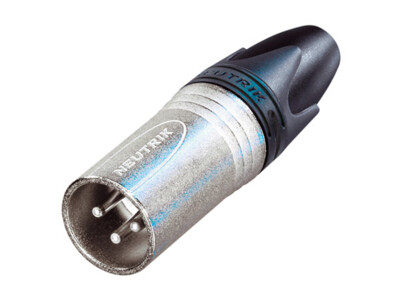

3 pole male cable connector with Nickel housing, silver contacts and crimp termination (standard B crimp).
Special version of the XLR cable connector XX Series with crimp terminals.
- Crimp termination with standard B-crimp tool (B-crimp acc. IEC 60352-2)
- Gastight and Solderless connection (RoHS compliant)
- Male connector with improved locking recess without "window", more stringent housing increases durability
- Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster
- Boot with polyurethane gland gives high protection to cable bending stresses
- Colored rings and boots available for coding or identification
- Sleek and ergonomic design - valuable and handy
- Rugged zinc diecast shell, longlasting and dependable
Technical Information
| Product | |
|---|---|
| Title | NC3MXX-HA |
| Connection Type | XLR |
| Gender | male |
| Electrical | |
|---|---|
| Capacitance between contacts | ≤ 4 pF |
| Contact resistance | ≤ 3 mΩ |
| Dielectric strength | 1,5 kVdc |
| Insulation resistance | > 10 GΩ (initial) |
| Rated current per contact | 1 A |
| Rated voltage | < 50 V |
| Mechanical | |
|---|---|
| Cable O.D. | 3.5 - 8.0 mm |
| Insertion force | ≤ 20 N |
| Withdrawal force | ≤ 20 N |
| Lifetime | > 1000 mating cycles |
| Wiresize | 0.22 - 0.34 mm² |
| Wiresize | 24 - 22 AWG |
| Wiring | Crimp contacts |
| Locking device | Latch lock |
| Material | |
|---|---|
| Boot | Polyurethan |
| Contact plating | 2 µm Ag |
| Contacts | Brass (CuZn39Pb3) |
| Insert | Polyamide (PA66) |
| Locking element | Zinc diecast (ZnAl4Cu1) |
| Shell | Zinc diecast (ZnAl4Cu1) |
| Shell plating | Nickel |
| Strain relief | Polyacetal (POM) |
| Environmental | |
|---|---|
| Flammability | UL 94 V-0 |
| Standard compliance | IEC 61076-2-103 |
| Protection class | IP 40 |
| Solderability | Complies with IEC 68-2-20 |
| Temperature range | -30 °C to +80 °C |

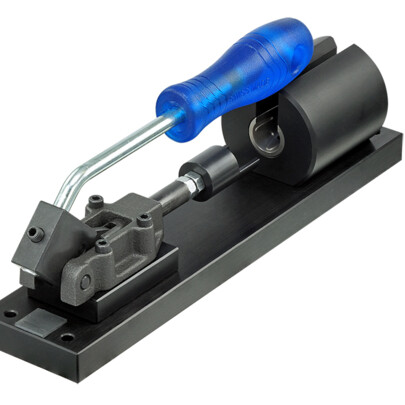

Speed boot assembly tool to press XX boot onto shell.

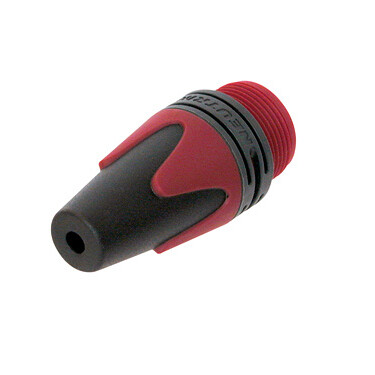

Colored bushings
Black bushing with clear coding ring

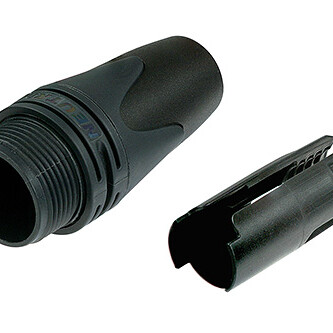

Large bushing with chuck type strain relief (8 mm - 10 mm cable O.D.).

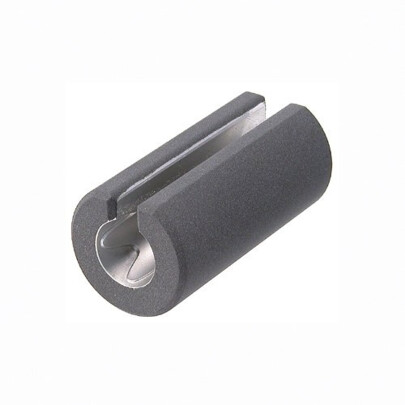

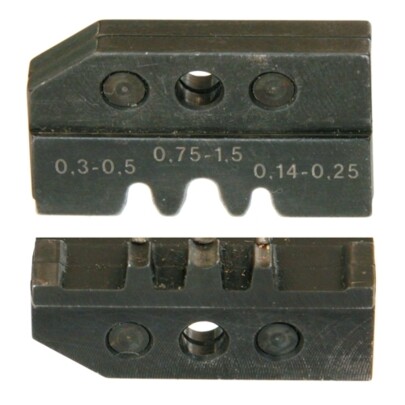

Die for Crimp XLR XX-HA

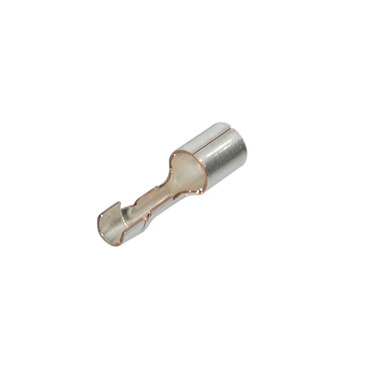

Replacement crimp contact for the NC3MXX-HA cable connector and the NC3MD-LX-HA receptacle
Hand tool for tightening the bushing of the XLR XX series, Plug PX series and etherCON CAT6 series.

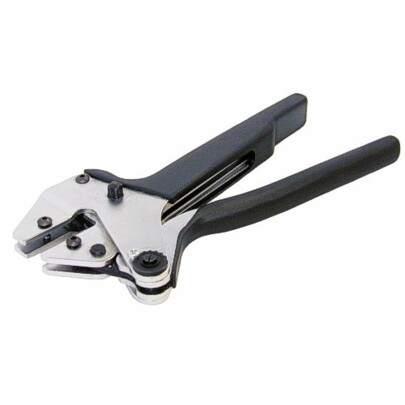

Crimp tool, frame ATTENTION: Suitable dies are DIE-R-* and DIE-R-BNC*
Colored coding rings. Color ring can be changed without unsoldering insert.

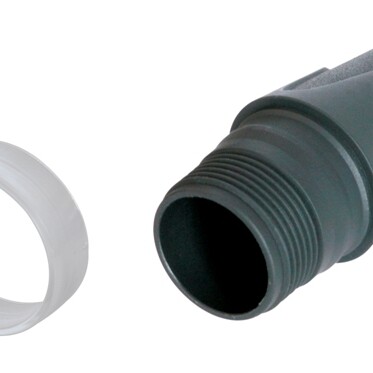

Transparent coding ring which allows an individual customized labeling, branding, coding etc.
