neutrik > Products > NC3MX-TOP
NC3MX-TOP

NC3MX-TOP

*** DISCONTINUED ***
Direct replacement / successor: NC3MX1-TOP

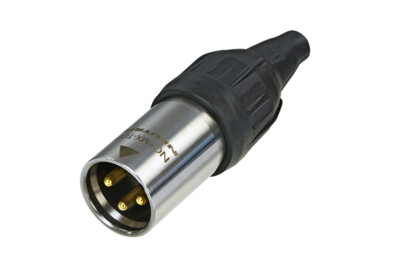

3 pole male cable connector, TRUE OUTDOOR PROTECTION, gold contacts

The X-TOP series is a "heavy-duty" XLR cable connector for outdoor use. IP65 rated and TOP approved in consideration to UL50E by mating with related cable or chassis connector of the XLR TOP range

Download Data Sheet
Selection of topics
Features & Benefits Downloads Technical Information Accessories
Download Data Sheet

Features & Benefits

  • Heavy duty sealed XLR connector range for harsh and demanding environment
  • IP65 rated and TOP approved in consideration to UL50E by mating with related cable or chassis connector of the XLR TOP range
  • Uses high impact UV resistant materials

Downloads

  • Drawing NC3MX-TOP (STP)
  • Drawing NC3MX-TOP (PDF)
  • Drawing NC3MX-TOP (DXF)
  • Product Guide TOP
  • Assembly Instruction - NC3MX-TOP + NC5MX-TOP

Technical Information

Product
Title NC3MX-TOP
Connection Type XLR
Gender male
Electrical
Capacitance between contacts ≤ 4 pF
Contact resistance ≤ 3 mΩ
Dielectric strength 1,5 kVdc
Insulation resistance > 10 GΩ (initial)
Rated current per contact 16 A
Rated voltage < 50 V
Mechanical
Cable O.D. 5.0 - 8.0 mm
Insertion force ≤ 20 N
Withdrawal force ≤ 20 N
Lifetime > 5000 mating cycles
Wiresize max. 1.5 mm2
Wiresize max. 16 AWG
Wiring Solder contacts
Locking device Latch lock
Material
Bushing UV-resistant rubber
Contact plating 0.2 µm Au hard alloy over 2 µm Ni
Contacts Brass (CuZn39Pb3)
Insert Polyamide (PA66)
Locking element Stainless steel
Shell Stainless steel
Strain relief Polyacetal (POM)
Environmental
Approvals UL
Flammability UL 94 V-0
Standard compliance IEC 61076-2-103
Protection class IP65
Solderability Complies with IEC 68-2-20
Temperature range -30 °C to +80 °C
