neutrik > Products > NC3FDX-TOP
NC3FDX-TOP

NC3FDX-TOP

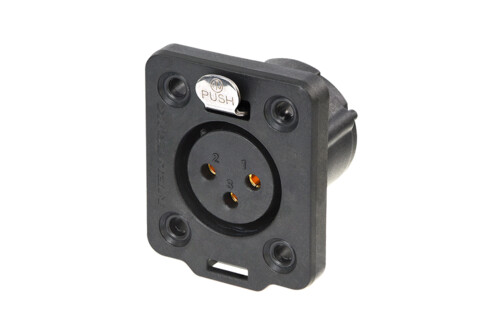

3 pole female chassis connector, TRUE OUTDOOR PROTECTION (TOP)

The X-TOP series is a "heavy-duty" XLR chassis connector for outdoor use. Outdoor protected by mating with related cable connector of the XLR TOP range (IP65 and UL50E). Gold contacts are standard.

Download Data Sheet
Selection of topics
Features & Benefits Downloads Distributor Stock Search Technical Information Accessories
Download Data Sheet

Features & Benefits

  • Heavy-duty sealed XLR connector range for harsh and demanding environment
  • Outdoor protection according to IP65 and UL50E (in combination with a TOP range counterpart)
  • Uses high impact UV-resistant materials
  • Maintains sealing when in use and when disconnected

Downloads

  • Product Guide TOP
  • Drawing NC3FDX-TOP
  • Drawing NC3FDX-TOP
  • 3D File NC3FDX-TOP
  • Assembly Instruction - NC*FDX-TOP + NC*MDX-TOP + SC*DX-TOP
  • UL Certificate of Compliance XLR TOP

Links

  • UL Certificate (ECBT2.E135070)

Distributor stock search

Enter part number and search Neutrik USA distributor's stock.

Technical Information

Product
Title NC3FDX-TOP
Connection Type XLR
Gender female
Electrical
Capacitance between contacts ≤ 4 pF
Contact resistance ≤ 5 mΩ
Dielectric strength 1,5 kVdc
Insulation resistance > 10 GΩ (initial)
Rated current per contact 16 A
Rated voltage < 50 V
Mechanical
Insertion force ≤ 20 N
Withdrawal force ≤ 20 N
Lifetime > 5000 mating cycles
Wiring Solder contacts
Locking device Latch lock
Mounting direction Front mounting
Chassis shape D
Material
Contact plating 0.2 µm Au over 2 µm Ni
Contacts Brass (CuZn39Pb3)
Insert Polyamide (PA 6.6 30 % GR)
Locking element Stainless steel
Gasket TPE
Shell Polyamide (PA 6.6 30 % GR)
Environmental
Flammability UL94 V-0
Standard compliance IEC 61076-2-103
Protection class IP65, UL50E enclosure type 4 (mated or sealing cap closed)
Solderability Complies with IEC 68-2-20
Temperature range -30 °C to +80 °C

Accessories

SCFDX-TOP-V1
SCFDX-TOP
