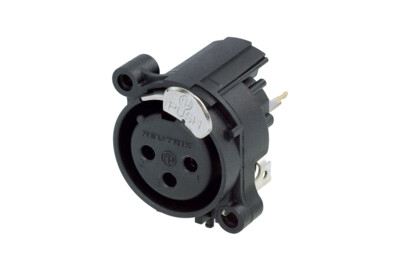

NC3FAAV1-DA
3 pole female XLR receptacle, grounding: mating connector shell to pin1 and front panel, vertical PCB mount
Most cost-effective round plastic body XLR PCB mount panel connector. Front panel cutout and PCB layout 100% compatible to A series. "Tulip" type contact design with high contact pressure for highest durability. With the asymmetric push tab an additional space saving of appr. 20 % can be achieved. Flammability rating UL94HB. UL recognized component.
- Most cost-effective series
- "Tulip" type contact design with high contact pressure for highest durability
- Selective gold plated contact and PCB termination area for best conductivity and solderability
- For space sensitive applications - 20 % space saving
Black self tapping PLASTITE® screw 2.9 x 1.05 tri-rondular configuration, 8 mm long, panhead
The dummyPLUG case includes a mixed assortment of dummyPLUGs
dummyPLUG for Neutrik female XLR receptacles
Dust protection cover for female chassis connectors
Rubber frame to mount between the front plate and the rear vertical print, for airtight vertical XLR A and B Series chassis connectors
