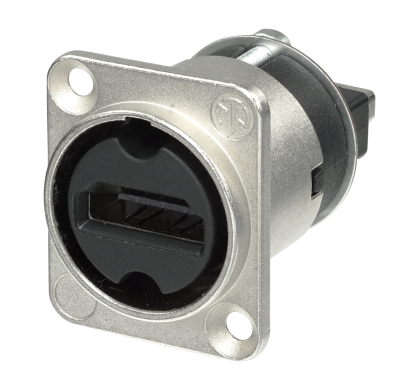

NAHDMI-W
HDMI feedthrough adapter, D-shape housing
Neutrik's HDMI solution for the transmission of any digital TV and PC video format including high-definition video (HDTV) can be integrated in networks very easy.
Features & Benefits
- To transmit any digital TV and PC video format including high-definition video (HDTV).
- HDMI feedthrough adapter with 19 pole HDMI receptacle at both ends
- IP65 ingress protection in mated condition with NKHDMI-* and SCDP-* sealing gasket
- Universally accepted standard D-shape housing
- Removable screen to chassis grounding
- Shielded system - high noise immunity and EMI protection due to continuous 360 degree shield
Downloads
Technical Information
| Product | |
|---|---|
| Title | NAHDMI-W |
| Connection Type | Adapter |
| Gender | female |
| Mechanical | |
|---|---|
| Wiresize | |
| Locking device | Push-Pull |
| Mounting direction | Front or rear mounting (max 2 mm panel thickness) |
| Chassis shape | D |
| Lifetime | > 1000 mating cycles |
| Material | |
|---|---|
| Contact plating | Au |
| Contacts | Bronze (CuSn) |
| Insert | |
| Shell | Zinc diecast (ZnAl4Cu1) |
| Shell plating | Nickel |
| Environmental | |
|---|---|
| Flammability | UL 94 V-0 |
| Standard compliance | HDMI 2.0 |
| Temperature range | -25 °C to +85 °C |
Accessories
Removable screen to chassis grounding
