NAC3PX-TOP

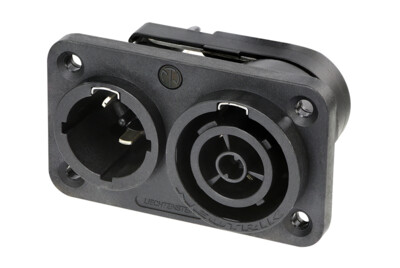

NAC3PX-TOP-with-open-SCNAC-PX

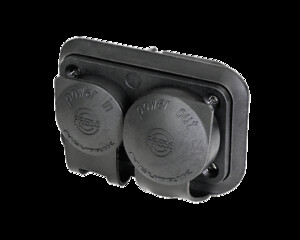

NAC3PX-TOP-with-closed-SCNAC-PX
NAC3PX-TOP
NAC3PX-TOP-with-open-SCNAC-PX
NAC3PX-TOP-with-closed-SCNAC-PX

NAC3PX-TOP

Appliance inlet-outlet combination, 1/4" flat tab terminals

The powerCON TRUE1 TOP is a locking 16 A true mains connector for outdoor applications. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection.

The powerCON TRUE1 TOP is a connector with breaking capacity (CBC), i.e. it can be connected or disconnected under load or live.

Download Data Sheet
Selection of topics
Features & Benefits Downloads Technical Information Accessories
Download Data Sheet

Features & Benefits

  • IP65 rating and certified outdoor protection to UL 50E enclosure type 4 (in mated condition or in combination with the rubber sealing cover SCNAC-PX)
  • Heavy duty sealed power connector for harsh and demanding environment
  • Uses high impact UV-resistant materials
  • True mains connector with breaking capacity (CBC)
  • Lockable 16 A single phase connector (USA: 20 A)
  • Easy and reliable twist lock system
  • Extremely robust and reliable
  • Unique Neutrik cable retention
  • ENEC certified according to IEC 60320
  • UL498 certified

Downloads

  • 3D File NAC3PX-TOP
  • Drawing NAC3PX-TOP
  • Drawing NAC3PX-TOP
  • Assembly Instruction - powerCON TRUE1 TOP NAC3PX-TOP
  • Product Guide TOP
  • UL Certificate NAC3PX-TOP
  • ENEC/VDE Certificate NAC3PX + NAC3PX-TOP
  • CB Certificate NAC3PX + NAC3PX-TOP

Links

  • UL Certificate (AXUT2.E343813)
  • cUL Certificate (AXUT8.E343813)

Technical Information

Product
Title NAC3PX-TOP
Electrical
Contact resistance ≤ 3 mΩ
Dielectric strength 4 kVdc / 2.8 kVac
Insulation resistance > 0.1 GΩ (after damp heat test IEC 68-2-30)
Number of electronical contacts 2 + PE
Rated current per contact 16 A rms (USA: 20 A)
Rated voltage 250 V ac
Mechanical
Lifetime > 5000 mating cycles
Wiresize 2.5 mm²
Wiresize 12 AWG
Material
Contact plating 2 µm Ag
Locking element Stainless steel
Shell Polyamide (PA 6.6)
Contacts Spring Copper (CuSn0.2)
Environmental
Flammability UL 94 V-0
Protection class UL50E enclosure type 4 (mated or in combination with SCNAC-PX)
Temperature range -30 °C - +80 °C

Accessories

NAC3PX with SCNAC-PX
SCNAC-PX
