NAC3FCA-1
neutrik / Products / powerCON® / powerCON® XX Series / NAC3FCA-1

NAC3FCA-1

Download Data Sheet

*** DISCONTINUED ***
Direct replacement / successor: NAC3FXXA-W-S (cable OD 6-12 mm)  and NAC3FXXA-W-L (cable OD 10-16 mm)

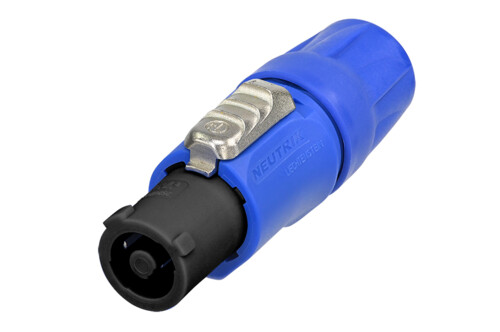

Lockable cable connector, power-in, screw terminals, blue, V-0 Insert

The powerCON is a locking 3 conductor equipment AC connector with contacts for line, neutral and pre-mating ground contact. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection.


Features & Benefits
  • Power-in (blue) and power-out (grey) versions with different keying to avoid the possibility of intermating
  • Fast and easy twist lock latching system
  • Extremely robust and reliable
  • Ergonomic design
  • Unique Neutrik chuck type strain relief
  • Improved kink protection by two-component bushing
  • UL, cUL recognized components
    VDE certified
  • V-0 Flammability rated insert
  • Circuit Breaking Capability (IEC 61984) when mated with powerCON XX Series Receptacles
Downloads
Assembly instruction powerCON Cable Connectors
pdf - 4.03 MB
st-nac3fca-1
pdf - 352.26 KB
st-nac3fca-1
dxf - 3.15 MB
NAC3FCA-1
stp - 5.82 MB
Intertek Certificate UL-1977 and CANCSA-C22
pdf - 83.36 KB

Technical Information

Product
Title NAC3FCA-1
Gender female
Electrical
Contact resistance ≤ 2 mΩ
Dielectric strength 4 kVdc / 2.8 kVac
Insulation resistance > 10 GΩ (initial)
Number of electrical contacts 2 + PE
Rating Europe EN 61984:20 A 250 V AC
Rating USA UL 1977:20 A 250 V AC
Mechanical
Cable O.D. 6 - 15 mm (1)
Lifetime > 1000 mating cycles
Wiresize 2,5 mm²
Wiresize 12 AWG
Locking device Quick Lock
(1) Cable O.D. range limited to 6 mm - 14 mm acc. VDE
Material
Contact plating Ag
Contacts Copper Alloy
Insert Polyamide (PA 6.6)
Locking element Zinc diecast
Shell Polyamide (PA 6.6)
Strain relief Polyacetal
Environmental
Temperature range -30 °C to +80 °C
Protection class IP 20
Flammability Rating UL 94 V-0
