neutrik > Products > FIBERFOX > FIBERFOX 4CH > FIBERFOX 4CH foxBRID​

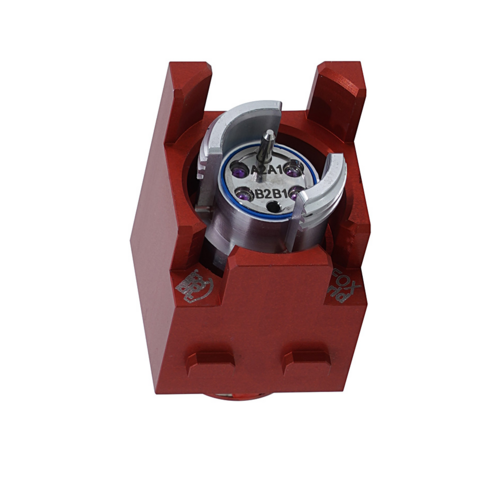

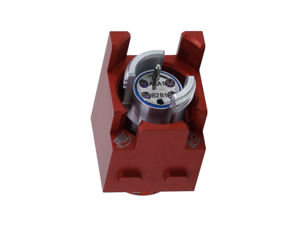

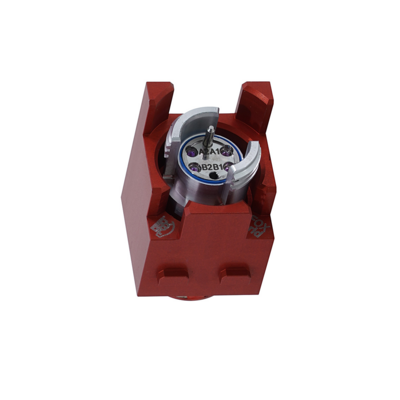

FIBERFOX 27423001_vs__FOXbrid

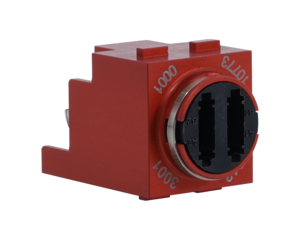

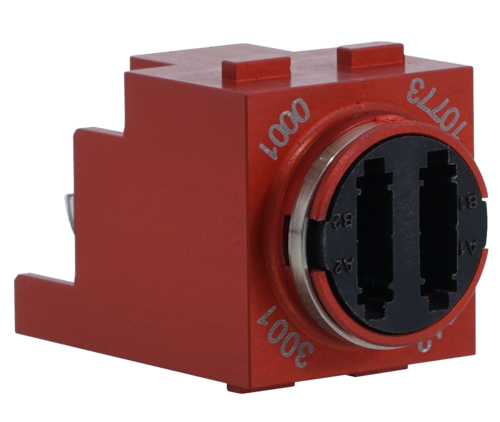

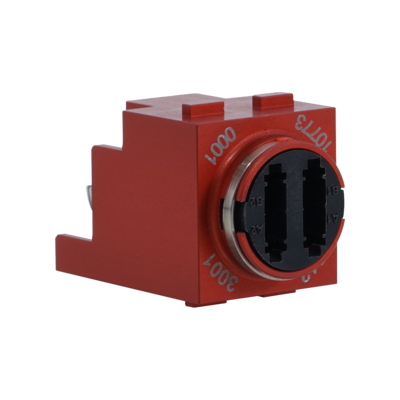

FIBERFOX 27423001_hs_FOXbrid

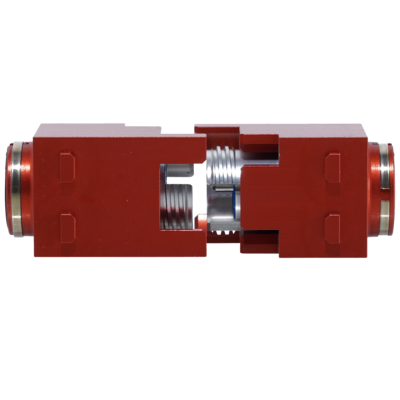

FIBERFOX 27423000_set_sh_FOXbrid
FIBERFOX 27423000_set_s_FOXbrid
FIBERFOX 27423001_vs__FOXbrid
FIBERFOX 27423001_hs_FOXbrid
FIBERFOX 27423000_set_sh_FOXbrid
FIBERFOX 27423000_set_s_FOXbrid

FIBERFOX 4CH foxBRID​

The FIBERFOX 4CH foxBRID is an expanded beam multimode hermaphroditic connector module and is suited for a vast array of industrial applications, including automation, robotics and railway. The innovative design ensures its ability for deployment in the toughest environments where constant performance and total reliability are critical. The module is designed according to the MIL-DTL-83526 standard and fits to other FIBERFOX solutions. ​

​

Benefiting from the expanded beam technology and the precision optical alignment the system creates high immunity against dust, mud, liquids and other contaminations. The FIBERFOX foxBRID module converts a standardized LC Patch cable into an expanded beam solution. It acts as a “feed-through” and fits into industrial standard shells.​

​

For example:​

  • Han-Modular® Harting​
  • RockStar® ModuPlug Weidmüller​
  • Etc.
Download Data Sheet
Selection of topics
Features & Benefits Downloads
Download Data Sheet

Features & Benefits

  • Very rugged plug face​
  • Very compact design - fits into industrial modular connectors​
  • Insensitive to electromagnetic influences​
  • Easy patching with common LC patch Cords​
  • No splicer, no expertise required for Installation
  • Extremely service-friendly

Downloads

  • 2D Drawing FIBERFOX foxBRID 4ch (PDF)
  • 3D Drawing FIBERFOX foxBRID 4ch (DWG)
  • NEUTRIK Insertion Loss Calculator (MS Excel, XLSM)
  • NEUTRIK - FIBERFOX Industrial Solutions - NF34 V01 202207
  • Handling Instruction - FIBERFOX

foxBRID 4CH​

FIBERFOX 4CH foxBRID

Code Description

NO4M4RW-FX​

FIBERFOX EBC15 foxBRID module 4CH MM OM4​
