neutrik > Products > FIBERFOX > FIBERFOX 2CH > FIBERFOX 2CH foxBRID​
FIBERFOX 27423000_vs_FOXbrid
FIBERFOX 27423000_sr_FOXbrid
FIBERFOX 27423000_s_FOXbrid
FIBERFOX 27423000_set_sh_FOXbrid

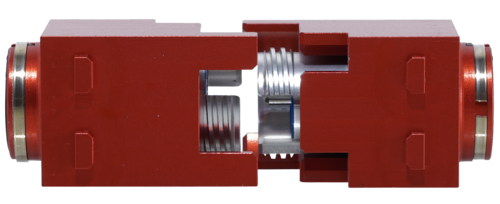

FIBERFOX 27423000_set_s_FOXbrid
FIBERFOX 27423000_vs_FOXbrid
FIBERFOX 27423000_sr_FOXbrid
FIBERFOX 27423000_s_FOXbrid
FIBERFOX 27423000_set_sh_FOXbrid
FIBERFOX 27423000_set_s_FOXbrid

FIBERFOX 2CH foxBRID​

The FIBERFOX 2CH foxBRID is an expanded beam multimode hermaphroditic connector module and is suited for a vast array of industrial applications, including automation, robotics and railway. The innovative design ensures its ability for deployment in the toughest environments where constant performance and total reliability are critical. The module is designed according to the MIL-DTL-83526 standard and fits to other FIBERFOX solutions. ​

​

Benefiting from the expanded beam technology and the precision optical alignment the system creates high immunity against dust, mud, liquids and other contaminations. The FIBERFOX foxBRID module converts a standardized LC Patch cable into an expanded beam solution. It acts as a “feed-through” and fits into industrial standard shells.​

​

For example:​

  • Han-Modular® Harting​
  • RockStar® ModuPlug Weidmüller​
  • Etc.
Download Data Sheet
Selection of topics
Features & Benefits Downloads Technical Information
Download Data Sheet

Features & Benefits

  • Very rugged plug face​
  • Very compact design - fits into industrial modular connectors​
  • Insensitive to electromagnetic influences​
  • Easy patching with common LC patch Cords​
  • No splicer, no expertise required for Installation
  • Extremely service-friendly

Downloads

  • 3D Drawing FIBERFOX foxBRID 2ch (DWG)
  • 2D Drawing FIBERFOX foxBRID 2ch (PDF)
  • NEUTRIK Insertion Loss Calculator (MS Excel, XLSM)
  • NEUTRIK - FIBERFOX Industrial Solutions - NF34 V01 202207
  • Handling Instruction - FIBERFOX

foxBRID 2CH​

FIBERFOX 27423000_vs_FOXbrid

Code Description

NO2M4RW-FX​

FIBERFOX EBC15 foxBRID module 2CH MM OM4​

Technical Information

Product
Title FIBERFOX 2CH foxBRID
Product code NO2M4RW-FX
Gender Hermaphroditic
Mechanical
Chassis Shape​ Rectangular ​
Lifetime > 10`000 mating cycles​
Locking device​ Screwed & Dependent to Modular locking device​
Vibration IEC 61300-2-1 & 61373​
Shock IEC 61373​
Material
Insert Steel
Shell Aluminium
Shell plating Hard anodized
Environmental
Flammability UL 94 V-0
Protection class IP 20
Compatibility MIL-DTL-83526
Temperature range -40° C to +85° C​
Optical
Insertion loss Typ. 0.9 db per connector / max. 1.45 db per connector
Optical connector EBC
Optical wiring ISO / IEC 11801 ISO / IEC 11801
