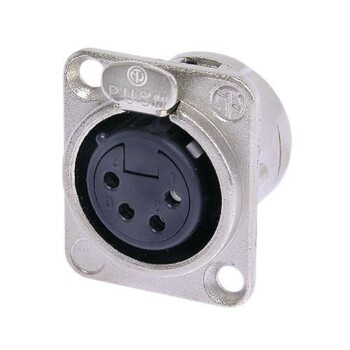

DL Series

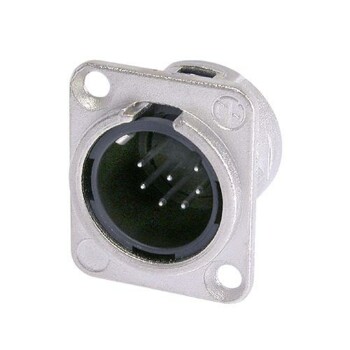

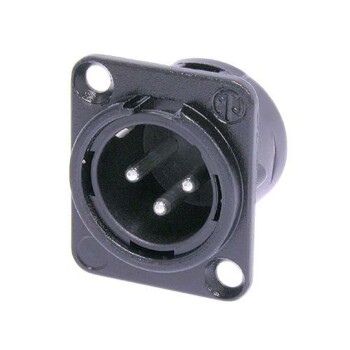

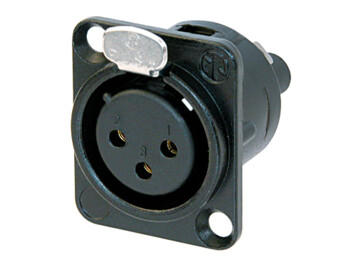

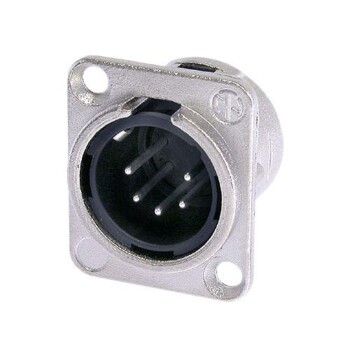

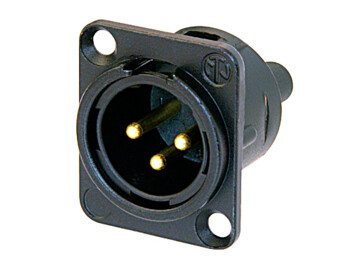

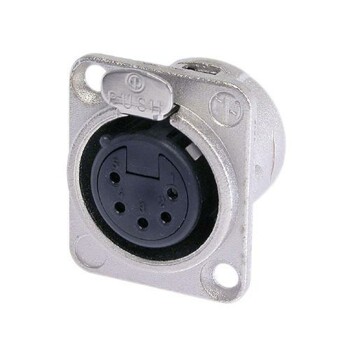

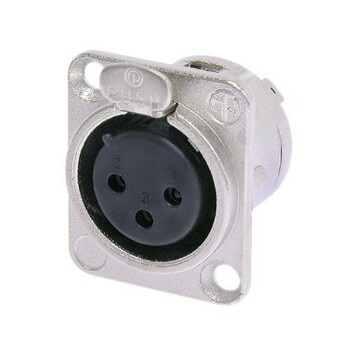

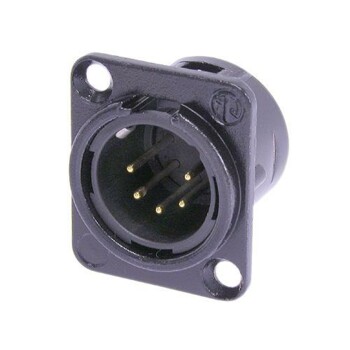

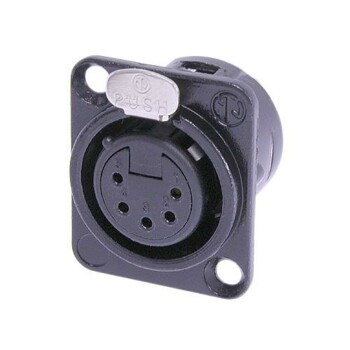

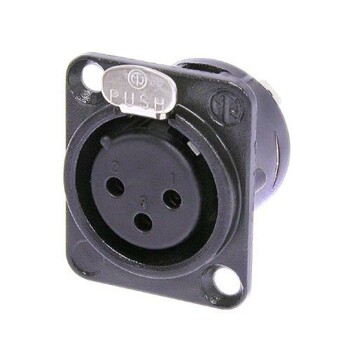

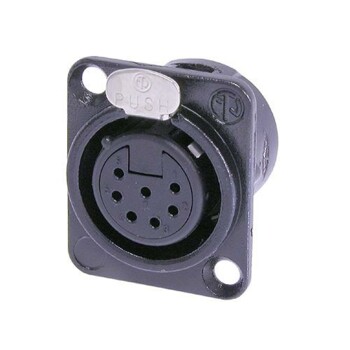

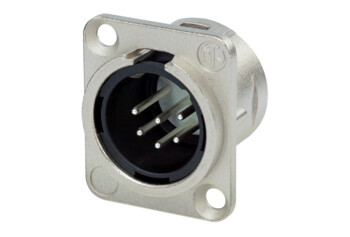

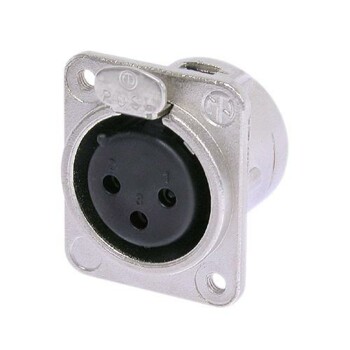

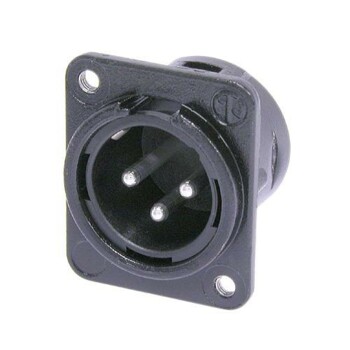

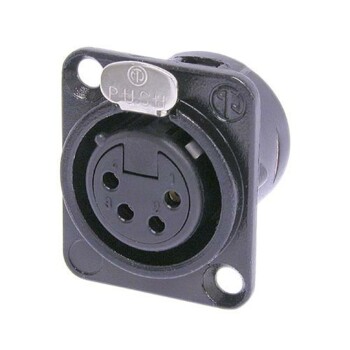

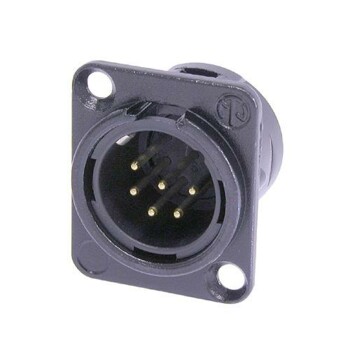

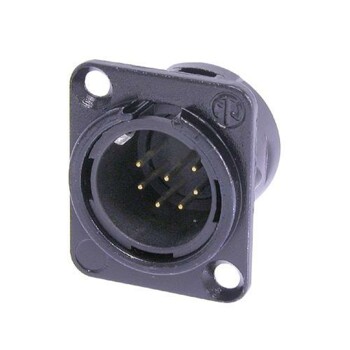

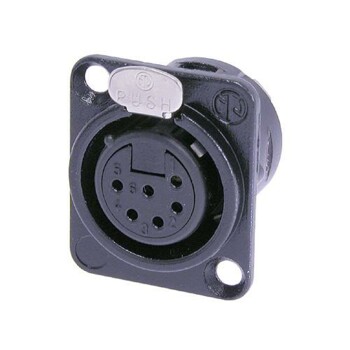

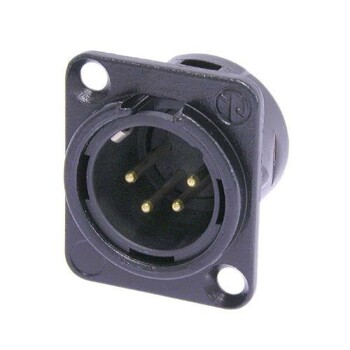

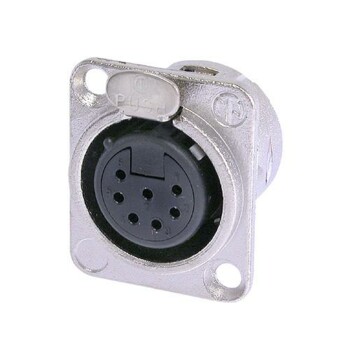

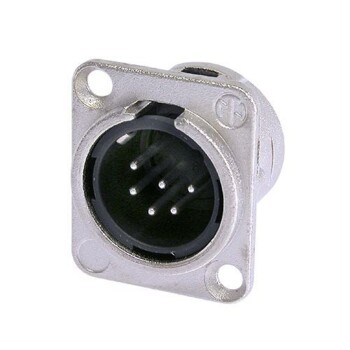

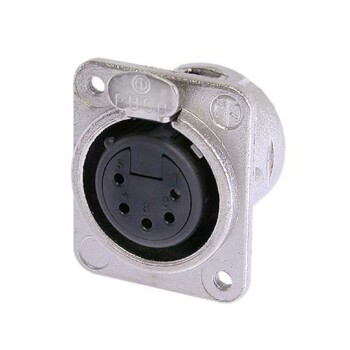

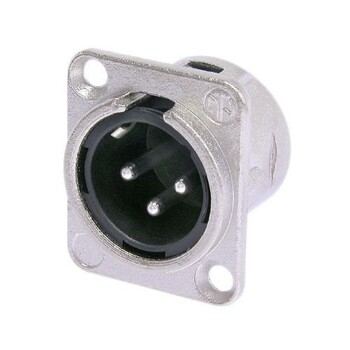

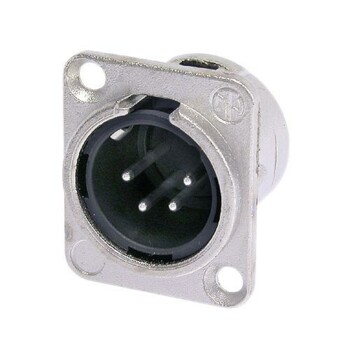

Universal metal body XLR series with solder cups. Unified D-size shell for male and female. Metal shell offer RF protection. Available in 3, 4, 5, 6 and 7 pin configuration with silver or gold plated contacts. Metal housing in nickel or black plating. UL recognized component.

Termination
Soldercups
Screw terminal
H = horizontal pcb mount, angled pins (4 and 5 pole only)

Locking mechanism
Latch lock

Grounding
Separate ground contact to mating connector shell and front panel

Front or rear panel mount

Panel fastening
Standard: Countersunk mounting holes to accept M3 bolts

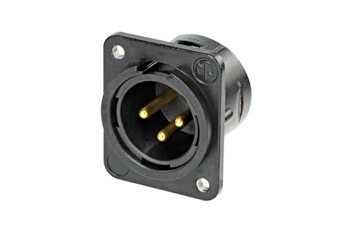

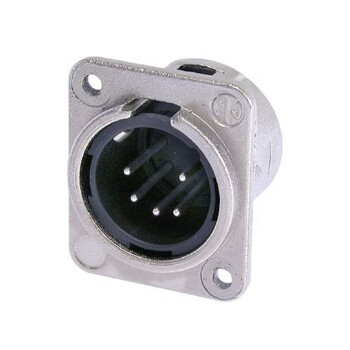

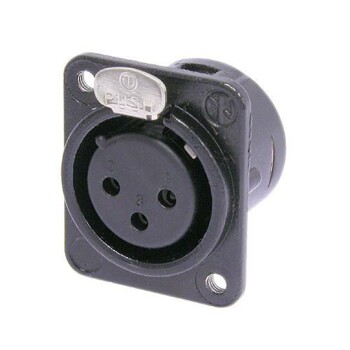

M3 version: M3 tapped thread

Panel thickness 1 - 3 mm
