AA Series

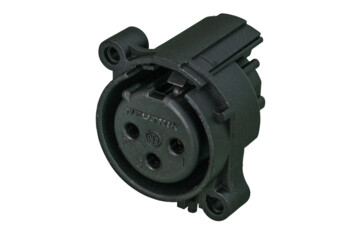

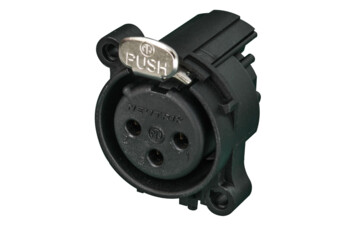

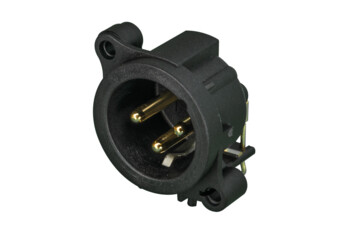

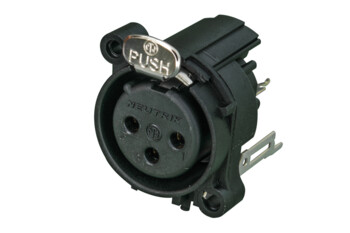

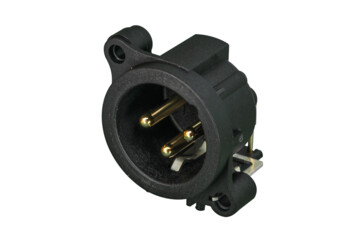

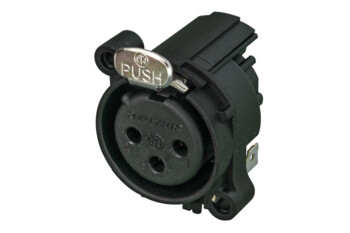

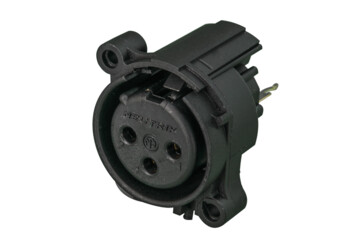

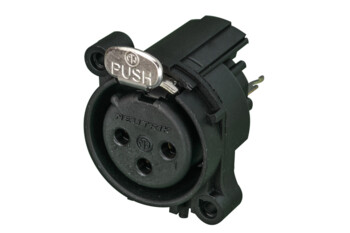

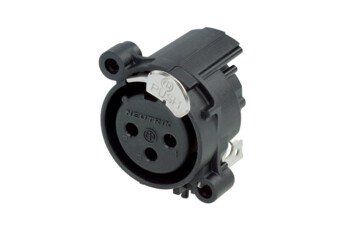

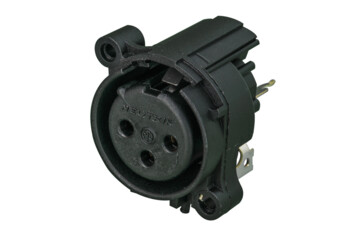

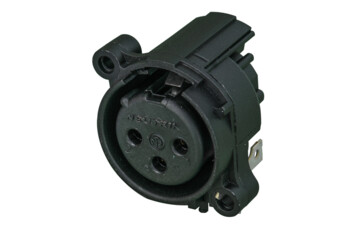

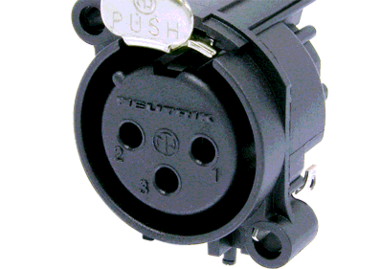

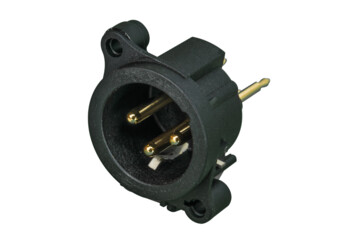

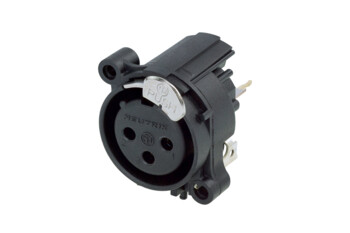

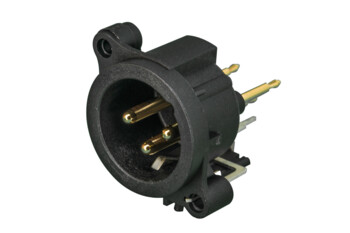

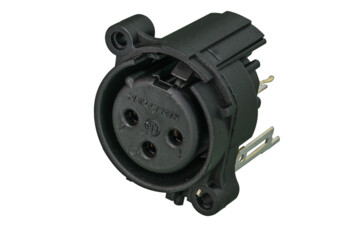

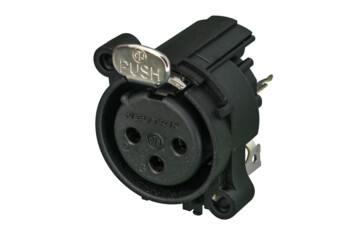

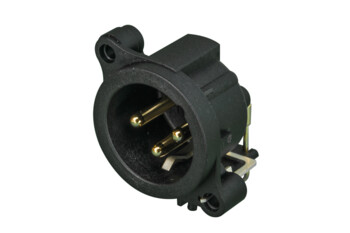

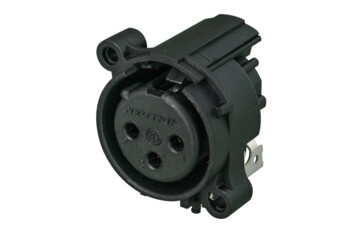

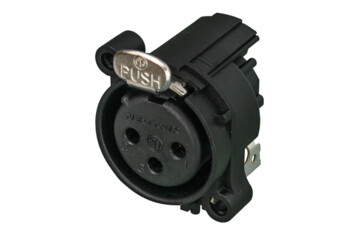

New most cost-effective round plastic body XLR PCB mount panel connector. Front panel cutout and pcb layout 100% compatible to A series. New "tulip" type contact design with high contact pressure for highest durability. Available as 3 pole male and female connectors. UL recognized component.

Termination
V = vertical pcb mount, straight pins
H = horizontal pcb mount, angled pins

Locking mechanism
-0 = no latch, retention spring
No suffix = latch lock

Grounding options
Male connector
-0 = ground contact connected to shell ground, but not to front panel and Pin 1
-1 = mating connector shell to pin1 and front panel
w/o suffix = separate ground contact to mating connector shell and front panel

Female connector
-1 = mating connector shell to pin1 and front panel
-2 = separate ground contact to mating connector shell and front panel
w/o suffix = without ground / shell contact

Rear panel mount

Fastening
Self-tapping PLASTITE® screw with thread 2.9x1.06 mm and of tri-rondular configuration (A-screw)
(PLASTITE® is a registered trademark of SFS Unimarket)

Panel thickness 1 - 3 mm
