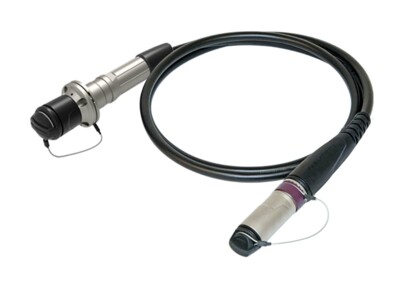

Cable Connector Assembly DREGONFLY and 5th
neutrik / Produkte / opticalCON® Glasfaser-Verbindungssystem / opticalCON® DRAGONFLY / opticalCON® DRAGONFLY Kabel / opticalCON DRAGONFLY Kabel female - fixed male

opticalCON DRAGONFLY Kabel female - fixed male

Datenblatt Download

NEU: Vorkonfektioniertes SMPTE-Kabel (female | male) in Linsentechnologie mit 2 Single-Mode-Ferrulen und 4 Kupferkontakten.

DRAGONFLY ist robuster, zuverlässiger und wartungsärmer als andere Hybrid-Kabel zur Übertragung von Kamera-Signalen. Mit Linsen-Technologie und Fusion Splicing gewährleistet Neutrik's DRAGONFLY ein äusserst stabiles Signal bei geringstem Verlust. Darüber hinaus schützen die Linsen und eine zusätzliche Dichtkappe wirkungsvoll gegen Verschmutzung und Staub.

Die Kabel werden anschlussfertig geliefert, Ersatzteile sind einzeln erhältlich. Der passende Einbausteckverbinder für die Kabel ist NO2FW-XP..

Features & Benefits
  • Geeignet für robuste Wand-/Panel-CCU-Installation im Innenbereich (Studio) und im Außenbereich (Ü-Wagen) gemäß SMPTE-Standard
  • Wassergeschützt nach IP68 in gestecktem Zustand
  • Robustes und verschmutzungsunempfindliches Hybrid-Verbindungssystem
    - 2 LWL Anschlüsse in einzigartiger Linsentechnologie
    - 2x Signal
    - 2x Versorgung
    - 1x GND
  • Einzigartiger Linsenstecker in Fusion-Splice-Technologie
  • Robust und zuverlässig: Metallgehäuse, durchgehende Kupfergeflechtschirmung, Verstärkungselement aus Edelstahl, starker Mantel aus schwarzem PUR, gefederte Push-Pull-Verriegelung und hohe Zugentlastung
  • Hervorragender Verschmutzungs- und Staubschutz
  • Erhältlich in verschiedenen Längen
  • Einfache Wartung
Downloads
st-no2sfx-xp
pdf - 58.66 KB
st-no2sfx-xp
dxf - 655.78 KB
d-no2sfx-xp
stp - 8.45 MB
st-no2smx-xp
pdf - 70.16 KB
st-no2smx-xp
dxf - 596.21 KB
d-no2smx-xp
stp - 4.56 MB
BDA 566 - opticalCON DRAGONFLY - NKO2S-XP-x Handling Instruction
pdf - 1.76 MB
NTP11 V2 - opticalCON DRAGONFLY
pdf - 2.28 MB
DRAGONFLY Business Case - Sales Comparison
vnd.openxmlformats-officedocument.spreadsheetml.sheet - 38.58 KB
NEUTRIK_DRAGONFLY_Application Instruction 202206
pdf - 2.79 MB
Handling instruction NKO2SMW-XP
pdf - 9.22 MB
NEUTRIK_DRAGONFLY-brochure-NF25V8-202206
pdf - 1.85 MB
Certificate_CB_SE-108042M1
pdf - 68.9 KB
Declaration of Conformity CE
pdf - 408.38 KB
UKCA Declaration of Conformity _DRAGONFLY
pdf - 216.22 KB
NEUTRIK_Insertion_Loss_Calculator
vnd.openxmlformats-officedocument.spreadsheetml.sheet - 162.68 KB

Technische Daten

Produkte
Title NKO2SMW-XP-0-*
Gender female / male (fixed)
Elektrisch
Contact resistance < 7 mΩ
Insulation resistance > 10 GΩ (initial)
Mains 240V AC / 10A / 50Hz
120V AC / 10A / 60Hz
300V DC / 7A<
Sense 42V AC peak / 1-3A / ≤1kHz
60V DC / 1-3A<
Mechanische Daten
Cable retention 500 N
Insertion force < 45 N
Withdrawal force < 45 N
Lifetime (typ.) 10'000 mating cycles
Wiresize Power 4 x 20 AWG
Wiresize Sense 2 x 24 AWG
Locking device Push-Pull
Material
Boot Rubber (EPDM)
Bushing Zinc diecast (ZnAl4Cu1)
Contacts Brass
Insert Polyetherimide and Polycarbonate (PEI+PC)
Shell Zinc diecast and Polyoxmethylen
Shell plating Nickel
Strain relief Brass
Umwelt
Flammability acc. to UL V-0
Protection Class IP68 , UL50E enclosure type 4 (mated with sealing KIT SCXP-*)
Certification according to
UV Test Evaluated according to UL50E
Salt spray test Evaluated according to UL50E
UV Test Evaluated according to UL50E
Optical
Insertion loss Typ. 0.6 dB per connection / Max. 1.0 dB per connection
Optical connector XB2 Feedthrough

Schnittbild Kabel

DRAGONFLY - Cabledrowing

Optionen und max. Kabellängen

opticalCON-DRUM-Packagin---013456
Verfügbare Kamerasysteme

SONY: HDC, HSC (discontinued), HXC (discontinued)
GRASS VALLEY: LDX82, LDX85N, LDX100/150, LDX86, LDX86N
MULTIDYNE: SILVERBACK V Camera Adaptor
IKEGAMI: UHK-430/CCU-430, UHK-X700/BSX-100
PANASONIC: AK-UC, AK-HC
