neutrik > Produkte > NF2C-B/2
Profi Übersicht

NF2C-B/2

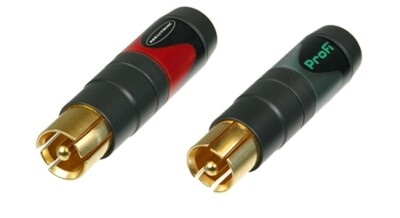

Professioneller Cinch (RCA) Kabelstecker mit vergoldeten Kontakten. Paarweise verpackt (1 x rot, 1 x schwarz)

2 x 2 Spannzangen für Kabeldurchmesser 3.0 mm bis 7.3 mm inklusive. Zusätzliche Spannzange für Kabeldurchmesser bis 8.0 mm als Zubehör erhältlich.

Datenblatt Download
Auswahl Themen
Features & Benefits Downloads Technische Informationen Zubehör
Datenblatt Download

Features & Benefits

  • Verbindung zuerst mit Masse, dann mit Signalpfad, beim Ausstecken wird zuerst Signalpfad, dann Masse getrennt
  • Keine akustischen Störgeräusche und keine mechanisch beschädigten Lautsprecher mehr
  • Präzise gefräste Teile
  • Einzigartige Neutrik Spannzangenzugentlastung
  • Vergoldete Kontakte
  • Schnittiges Design mit "Soft-touch" Oberfläche und farbiger Hülse
  • Verbesserter Masse Lötkontakt für leichtes Anlöten

Downloads

  • Strichzeichnung NF2C
  • Strichzeichnung NF2C
  • Montageanleitung - Profi
  • Produkt Katalog - Kapitel Klinkenstecker und -buchsen

Technische Informationen

Produkte
Titel NF2C-B/2
Verbindungstyp Profi
Geschlecht male
Elektrisch
Kapazität zwischen Kontakten ≤ 7 pF
Durchgangswiderstand >10G mΩ
Durchschlagsfestigkeit 1,5 kVdc
Isolationswiderstand > 5 GΩ
Nennstrom pro Kontakt depends on mating connector / A
Nennspannung < 50 V
Mechanische Daten
Kabeldurchmesser 3.0 - 7.3 mm
Lebensdauer > 2000 mating cycles
Leiterquerschnitt 1,5 mm²
Leiterquerschnitt 16 AWG
Anschlussart Solder contacts
Material
Kontaktbeschichtung 5 µm Au over 5 µm Ni
Kontakte Brass (CuZn39Pb3)
Einsatz PBTP 20 % GR
Gehäuse Brass (CuZn39Pb3)
Zugentlastung Polyacetal (POM)
Umwelt
Entflammbarkeit UL 94 HB
Normenkompatibilität IEC 601-14
Schutzklasse IP 40
Lötbarkeit Complies with IEC 68-2-20
Temperaturbereich -30 °C to +80 °C

Zubehör

CNF-9
CNF-9
