neutrik > Produkte > etherCON RJ45 Steckverbinder > etherCON Einbaubuchsen > etherCON TOP Serie > NE8FDP-TOP

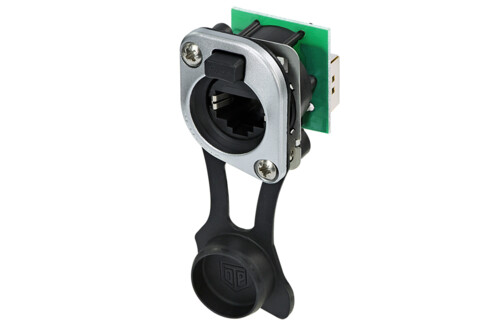

NE8FDP-TOP_open

NE8FDP-TOP

RJ45 feedthrough receptacle, combined with sealing kit SE8FD-TOP, D-shape metal flange with the latch lock, mounting screws included.

The etherCON series is a ruggedized and lockable RJ45 connector system, optimized for pro audio, video and lighting network applications with IP65 rating and UL 50E certification. The chassis connectors are shaped to fit into standardized panels out of the entertainment industry. The D-series offers the most rugged design of the etherCON series and is perfectly suitable for panel mount and the installer market.

ATTENTION: Does not intermate with CAT6 cable connector NE8MC6-MO and NKE6S* cables.

Datenblatt Download
Auswahl Themen
Features & Benefits Downloads Technische Informationen Zubehör
Datenblatt Download

Features & Benefits

  • IP65 rating and certified outdoor protection to UL 50E (in combination with NE8MX-TOP or sealing cap closed)
  • Uses high impact UV-resistant and gasket materials
  • Accomodates NE8MCX* or any standard RJ45 plug
  • Class D or CAT5e according to ISO/IEC 11801 and TIA/EIA
  • Approved latch lock system
  • Mountable from the front of the panel
  • Ground panel connection

Downloads

  • Strichzeichnung NE8FDP-TOP
  • Strichzeichnung NE8FDP-TOP
  • 3D File NE8FDP-TOP Flange
  • 3D File NE8FDP-TOP Body
  • Montageanleitung - etherCON NE8FDP-TOP
  • Produktbroschüre TOP
  • UL Certificate etherCON TOP

Links

  • UL Certificate (ECBT2.E501349)
  • cUL Certificate (ECBT8.E501349)

Technische Informationen

Produkte
Title NE8FDP-TOP
Type Chassis
Connection Type etherCON
Gender female
Elektrisch
Contact resistance < 50 mΩ
Dielectric strength 1 kVdc
Frequency range 1 - 100 MHz
Insulation resistance > 0.5 GΩ
Rated current per contact 1.5 A
Rated voltage < 50 V
Transmission performance CAT 5e
Mechanische Daten
Insertion force ≤ 20 N
Withdrawal force ≤ 20 N
Lifetime 1000 mating cycles
Panel thickness 2 mm - 4 mm , 0.08" - 0.16"
Wiring Feedthrough
Locking device Latch lock
Chassis shape D
Material
Contact plating 0.2 µm Au over Ni plating
Contacts Bronze (CuSn8)
Shell Zinc diecast (ZnAl4Cu1)
Shell plating Chromium
Umwelt
Flammability UL 94 V-0
Standard compliance TIA/EIA 586B, IEC11801
Temperature range -30 °C to +80 °C
Protection class IP65, UL50E enclosure type 4 (mated or sealing cap closed)

Zubehör

SCCD-W
