neutrik > Produkte > NC6FD-LX

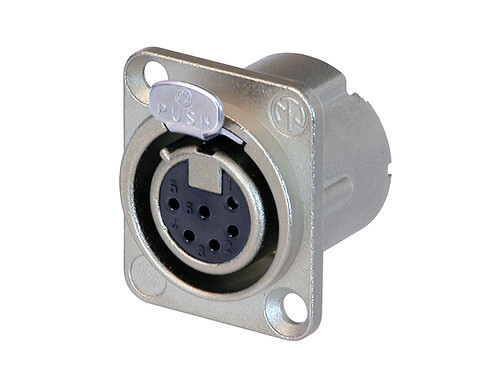

NC6FD-LX

NC6FD-LX

6 polige Chassisbuchse, Lötanschlüsse, vernickeltes Gehäuse, Silber beschichtete Kontakte

Die DLX Serie im kompakten Metallgehäuse mit integriertem Massekontakt, der eine exzellente Schirmung und einen ausgezeichneten Schutz gegen HF Störungen bietet.

Datenblatt Download
Auswahl Themen
Features & Benefits Downloads Technische Informationen Zubehör
Datenblatt Download

Features & Benefits

  • Metallgehäuse bietet beste Rundumschirmung gegen hochfrequente und elektromagnetische Störungen
  • Duplex Massekontakt für beste Kontaktintegrität zwischen Einbaubuchse und Kabelstecker
  • Female Kontakt mit Lötstop verhindert das Einlaufen in den Steckbereich
  • Grosse Lötfahnen zur einfachen Montage
  • Massekontakt kann einfach mit Pin 1 verbunden werden
  • Installationskompatibilität durch Standard D Gehäuse

Downloads

  • Strichzeichnung NC6FD-LX
  • Strichzeichnung NC6FD-LX
  • 3D File NC6FD-LX
  • Produkt Katalog - Kapitel XLR
  • UL Certificate of Compliance

Links

  • UL Certificate (ECBT2.E135070)

Technische Informationen

Produkte
Titel NC6FD-LX
Verbindungstyp XLR
Geschlecht female
Elektrisch
Kapazität zwischen Kontakten ≤ 7 pF
Durchgangswiderstand ≤ 5 mΩ
Durchschlagsfestigkeit 1,5 kVdc
Isolationswiderstand > 10 GΩ (initial)
Nennstrom pro Kontakt 7,5 A
Nennspannung < 50 V
Mechanische Daten
Einsteckkraft ≤ 20 N
Aussteckkraft ≤ 20 N
Lebensdauer > 1000 mating cycles
Leiterquerschnitt max. 1.0 mm²
Leiterquerschnitt max. 18 AWG
Anschlussart Solder contacts
Verriegelung Latch lock
Gehäuseform D
Material
Kontaktbeschichtung 2 µm Ag over 2 µm Ni
Kontakte Brass (CuZn39Pb3)
Einsatz Polyamide (PA 6.6 30 % GR)
Verriegelungselement Steel Ck67
Gehäuse Zinc diecast (ZnAl4Cu1)
Gehäusebeschichtung Nickel
Umwelt
Entflammbarkeit UL 94 HB
Normenkompatibilität IEC 61076-2-103
Schutzklasse IP 40
Lötbarkeit Complies with IEC 68-2-20
Temperaturbereich -30 °C to +80 °C

Zubehör

dummyPLUG Case
CAS-DUMMY
DBA
DBA-BL
DSS
DSS-*
MFD
MFD
NDF
NDF
SCDF
SCDF
SCDP
SCDP-*
SCDR
SCDR
SCDX geschlossen
SCDX
SCF
SCF
SCCD-W
SCCD-W
