NC5FX-TOP
*** DISCONTINUED ***
Direct replacement / successor: NC5FX1-TOP

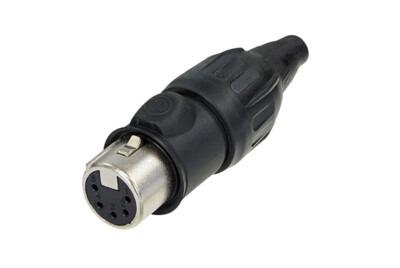

5-poliger Kabelstecker, TRUE OUTDOOR PROTECTION (TOP), vergoldete Kontakte.
IP65 und TOP-Geprüft (in Anlehnung an UL50E) bestehen im gesteckten Zustand mit dem zugehörigen Einbausteckverbinder.
Features & Benefits
- Abgedichteter XLR-Stecker für den Einsatz in rauen Umgebungen mit höchsten Anforderungen.
- Schutzklasse IP65
- Schlagfestes UV-beständiges Material
- Erfüllt TOP Anforderungen in Anlehnung an UL50E
- IP65 und TOP-Geprüft (in Anlehnung an UL50E) in Kombination mit zugehörigem Gegenstecker der TOP-Serie
Downloads
Technische Informationen
| Produkte | |
|---|---|
| Title | NC5FX-TOP |
| Connection Type | XLR |
| Gender | female |
| Elektrisch | |
|---|---|
| Capacitance between contacts | ≤ 4 pF |
| Contact resistance | ≤ 3 mΩ |
| Dielectric strength | 1,5 kVdc |
| Insulation resistance | > 10 GΩ (initial) |
| Rated current per contact | 16 A |
| Rated voltage | < 50 V |
| Mechanische Daten | |
|---|---|
| Cable O.D. | 5.0 - 8.0 mm |
| Insertion force | ≤ 20 N |
| Withdrawal force | ≤ 20 N |
| Lifetime | > 1000 mating cycles |
| Wiresize | max. 1.0 mm² |
| Wiresize | max. 18 AWG |
| Wiring | Solder contacts |
| Locking device | Latch lock |
| Material | |
|---|---|
| Bushing | UV-resistant rubber |
| Contact plating | 0.2 µm Au hard alloy over 2 µm Ni |
| Contacts | Brass (CuZn39Pb3) |
| Insert | Polyamide (PA 6.6 30 % GR) |
| Locking element | St3K32 (latch) / Ck 67 (spring) |
| Shell | Zinc diecast (ZnAI4Cu1) |
| Shell plating | Nickel |
| Strain relief | Polyacetal (POM) |
| Sealing jacket | UV-resistant rubber |
| Umwelt | |
|---|---|
| Approvals | UL |
| Flammability | UL 94 HB |
| Standard compliance | IEC 61076-2-103 |
| Protection class | IP65 |
| Solderability | Complies with IEC 68-2-20 |
| Temperature range | -30 °C to +80 °C |
Zubehör
ITX-TOP
SCMX-TOP
The rubber sealing cover protects the XLR male TOP connectors NC*MX-TOP & etherCON TOP cable connector NE8MX-TOP from dust and water according to protection class IP65.
SCFX-TOP
The rubber sealing cover protects XLR TOP cable connectors NC*FX-TOP from dust and water according to protection class IP65.
